Delphi® Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: FG0486Product Specifications- Notes: Except Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604192214
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
$302.46

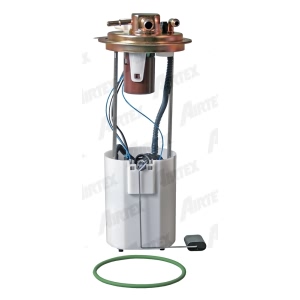

Airtex® In-Tank Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: E3678MProduct Specifications- Notes: w/Side Rear Left Hinged Door
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure Rate (psi): 100
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044014072
- Warranty: Lifetime Limited Warranty
- Part Description: 2007 Chevrolet Express 1500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
$156.97
Autobest® Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: F2689AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 50
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 59.45
- Minimum Pump Pressure (PSI): 56.55
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.87
- Product Length (in): 15.75
- Product Width (in): 8.66
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 259
- Resistance Ohms Full: 43
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845126894
- Voltage: 12V
- Weight (lbs): 4.44
- Wire Harness Included: No
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
- 2007 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
$101.02
OEM (Genuine) 2007 Chevrolet Express 1500 Fuel Pump
PartNumber: 19331939
Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.3l; W/O Left Rear Door;Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.8l, 5.3l; W/O Left Rear Door
- Other Names: Fuel Pump
- Item Dimensions: 17.3 x 13.6 x 10.6 inches
- Item Weight: 2.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19303380, 19153039, 88965414, 19133519
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
$331.30 MSRP:$625.12You Save: $293.82 (48%)
Delphi® Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: FG0399Product Specifications- Notes: Except Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 54 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604160343
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base | 6 Cyl 4.3L
- 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
$280.79
Delphi® Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: FG0402Product Specifications- Notes: RPO Code E26 - w/Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 54 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604160374
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base | 6 Cyl 4.3L
- 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
$223.70OEM (Genuine) 2007 Chevrolet Express 1500 Fuel Pump
PartNumber: 19331944
Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; Commercial Cutaway; W/O 55 Gallon Tank; All
- Other Names: Fuel Pump
- Item Dimensions: 17.4 x 13.7 x 10.7 inches
- Item Weight: 5.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19303417, 88965416, 19153045, 19133508
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
$335.76 MSRP:$633.52You Save: $297.76 (48%)OEM (Genuine) 2007 Chevrolet Express 1500 Tank Asm-Fuel
PartNumber: 20969743
Product Specifications- Other Names: Fuel Pump, Fuel Tank
- Item Dimensions: 46.8 x 37.8 x 17.2 inches
- Item Weight: 101.80 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 87848344
- Part Description: 2007 Chevrolet Express 1500 Tank Asm-Fuel
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
$1916.20 MSRP:$2890.19You Save: $973.99 (34%)
OEM (Genuine) 2007 Chevrolet Express 1500 Fuel Pump
PartNumber: 19331946
Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.3l; All;Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.8l, 5.3l; All; 6.6 Liter Diesel, W/O 6.6 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.9 x 13.7 x 10.4 inches
- Item Weight: 2.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19303381, 19133516, 19153042
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
OEM (Genuine) 2007 Chevrolet Express 1500 Fuel Pump
PartNumber: 19352891Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; Commercial Cutaway; W/55 Gallon Tank; All
- Other Names: Fuel Pump
- Item Dimensions: 16.8 x 13.7 x 10.1 inches
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19331312, 19153056, 19303411, 19133502
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump
Vehicle Fitment- 2007 Chevrolet Express 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
Airtex® Fuel Pump Module Assembly for 2007 Chevrolet Express 1500
PartNumber: E3725MProduct Specifications- Notes: Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure Rate (psi): 62
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure Rate (psi): 55
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044041566
- Part Description: 2007 Chevrolet Express 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L
