Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 7
Flow Rating: 26 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 94.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 16.0
Resistance Ohms Full: 270.0
Strainer Included: Yes
System Pressure: 39 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604231753
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

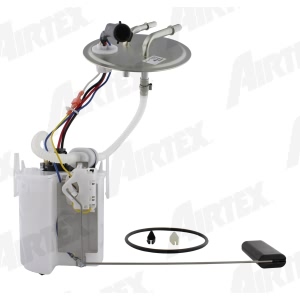

Part Description: 2006 Mercury Mariner Fuel Pump Module Assembly
Notes: with Onboard Fuel Vapor Recovery;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 22 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 1
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 39 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604200988
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2006 Mercury Mariner Fuel Pump Module Assembly
Notes: without Onboard Fuel Vapor Recovery;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 22 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 39 psi
Terminal Gender: Male
Terminal Quantity: 6
Terminal Type: Pin
UPC: 689604202081
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2006 Mercury Mariner Fuel Pump Module Assembly
Notes: Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 38 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 90.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604200827
Voltage: 12.0 VDC
Wiring Harness Included: No
Part Description: 2006 Mercury Mariner Fuel Pump And Strainer Set
Notes: w/o Onboard Refuel Vapor Recovery, For Pump Only Both Strainers Are Reqd; Strainer Reqd to validate the warranty;w/o Onboard Refuel Vapor Recovery; Incls Tank Seal; Strainers Incld w/pump.
Connector Shape: Rectangle
Fuel Pump Inlet Type: Strainer
Fuel Sending Unit Included: No
Gasket or Seal Included: Yes
Inlet Attachment: Inlet-Strainer
Inlet Count: 1
Inlet Outside Diameter: 11.0
Inlet Type: Strainer
Internal or External: In Tank
Internet Product Code (IPC): C0EBEADE0F1
Item Grade: OEM Standard Part
Item has MSDS (SDS): No
Length (Inch): 114.0
Maximum Free Flow Rate (gph): 80
Maximum Pressure (psi): 110
MFG Brand Name: Airtex Products
MFG Model # (Series): E2314
Minimum Free Flow Rate: 33.0
Minimum Free Flow Rate (gph): 70
Minimum Pressure (psi): 90
Mounting Hardware Included: No
Muffler Outlet Diameter (in): 9.0
Negative Ground: Yes
Outlet Attachment: Outlet-HoseConnect
Outlet Count: 1
Outlet Fitting Thread Size: 1/4
Outlet Quantity: 1
Outlet Size: Outlet-.345
Outlet Type: Hose Barb
Package Contents: Pump and Kit
Pump Type: Electric
Regulator Included: No
Seal And Lock Ring Included: No
Strainer Included: No
Supplier Company Name: Airtex Products
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Spade
Universal Or Specific Fit: Specific
UPC: 080044008415
Voltage [V]: 12V
Wiring Harness Included: Yes
Part Description: 2006 Mercury Mariner In-Tank Fuel Pump and Strainer Set
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,GAS;w/o Onboard Refuel Vapor Recovery
Average Current Draw(A): 6.5
Average Flow Rating(GPH): 32
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Round
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: External and Internal
Lock Ring Included: No
Maximum Pump Pressure (PSI): 100
Minimum Pump Pressure (PSI): 90
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Hose Barb
Product Height (in): 5.51
Product Length (in): 11.02
Product Width (in): 8.27
Pump Type: Turbine
Regulator Included: No
Resistance Ohms Empty: 15
Resistance Ohms Full: 160
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845114648
Voltage: 12V
Weight (lbs): 2.44
Wire Harness Included: No
Part Description: 2006 Mercury Mariner Electric Fuel Pump
