Notes: 7 Lug; Incls hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction & recheck torque. This ensures bearing seat. Failure will result if not completed correctly.
Bolt Circle: 150mm (5.91")
Inner Bearing Cup Included: No
Lug Holes Quantity: 7
Minimum Thickness: 28.5mm (1.12")
Nominal Thickness: 30mm (1.18")
Outer Bearing Cup Included: No
Quantity: 1 Per Pack
Rotor Construction: 1-Piece
Rotor Design: Hub and Rotor Assembly
Rotor Diameter: 330mm (12.99")
Rotor Height: 92.2mm (3.63")
Rotor Style: Plain
Rotor Vane Type: Non-Directional
Rust Resistant Coating: No
Stud Thread Size: M14 x 2mm
UPC: 756632132403
Wheel Studs Included: Yes
Part Description: Vented Front Brake Rotor And Hub Assembly
Notes: 6 Lug; Base Payload Pkg; Hub & Rotor Assy; Spindle Nut should be replaced. Use 124.65901; Upgrade Kit;6 Lug; Base Payload Pkg; OE Style Replacement; Spindle Nut should be replaced. Use 124.65901
UPC: 805890469247

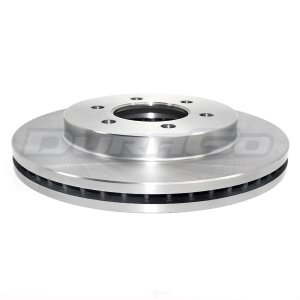

Part Description: Premium Vented Front Brake Rotor
Notes: 6 Lug; Incls hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction & recheck torque. This ensures bearing seat. Failure will result if not completed correctly.
Bolt Circle: 135mm (5.31")
Inner Bearing Cup Included: No
Lug Holes Quantity: 6
Minimum Thickness: 28.5mm (1.12")
Nominal Thickness: 30mm (1.18")
Outer Bearing Cup Included: No
Quantity: 1 Per Pack
Rotor Construction: 1-Piece
Rotor Design: Hub and Rotor Assembly
Rotor Diameter: 330mm (12.99")
Rotor Height: 92.2mm (3.63")
Rotor Style: Plain
Rotor Vane Type: Non-Directional
Rust Resistant Coating: No
Stud Thread Size: M14 x 2mm
UPC: 756632132397
Wheel Studs Included: Yes
Part Description: Vented Front Brake Rotor And Hub Assembly
