Notes: 130 Amp (SELL OUT. REPLACED BY 210-1085); DENSO is the OE
Amperage Rating: 130
Family: DENSO OE
Fan Type: Internal
New or Remanufactured: Remanufactured
Plug Type: 919
Regulator Type: External
Rotation Direction: Clockwise
UPC: 042511161054
Voltage: 12.0

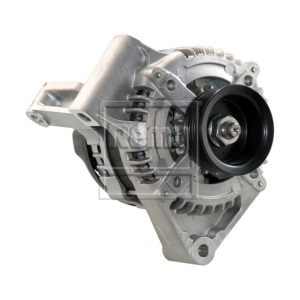

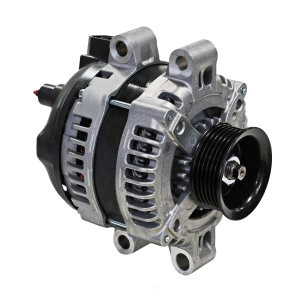

Part Description: 2006 Chevrolet Monte Carlo Alternator
More Info
Vehicle Fitment
2006 Chevrolet Monte Carlo | All Trims | 8 Cyl 5.3L
FAQ for Alternator Repair
Q: What is the removal procedure for the generator bracket?
A:
The procedure is to remove the generator and the idle pulley, raise the vehicle, remove the lower tensioner bolt, rotate the tensioner, lower the vehicle, remove the generator bracket bolts and remove the generator bracket.
By Bob
GM Specialist
28/10/2022
Q: What is the proper way to install the generator?
A:
You can install the generator and bolts, install the positive battery lead and generator output BAT terminal nut, position the protective boot to the generator output BAT terminal, connect the generator electrical connector, install the drive belt and the engine sight shield and connect the negative battery cable.
By Bob
GM Specialist
28/10/2022
Q: How do you install the generator bracket?
A:
You can install the generator bracket, install the generator bracket bolts, raise the vehicle, install the lower generator bracket bolt, install the lower tensioner bolt, lower the vehicle, install the idler pulley and install the generator.
By Bob
GM Specialist
28/10/2022
Q: How do you replace the generator?
A:
You can disconnect the negative battery cable, remove the engine sight shield and the drive belt, disconnect the generator electrical connector, position aside the protective boot from the generator output BAT terminal, remove the generator output BAT terminal nut, remove the positive battery lead and remove the generator bolts and generator.
By Bob
GM Specialist
28/10/2022
FAQ for Other Repair Info
Q: How do you install the starter motor?
A:
You can position the Starter motor to the engine, install the starter bolts, connect the starter motor electrical connector, install the engine harness terminal, the positive battery cable, and the starter solenoid BAT terminal nut, install the air cleaner assembly and connect the negative battery cable.
Q: How do you install the battery negative cable?
A:
You can install the negative battery cable terminal, tighten the negative battery cable terminal nut, set the clock, and program the radio stations back into the radio.
Q: What is the proper way to install the battery current sensor?
A:
You can slide the NEW battery current sensor up onto the battery cable, attach the battery current sensor to the negative battery cable, install the positive and negative battery cables and connect the I/P harness electrical connector to the battery current sensor.
