2005 Chevrolet Suburban 1500
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
OEM (Genuine) 2005 Chevrolet Suburban 1500 Module
PartNumber: 19208963
Product Specifications- Notes: 1500 Series, W/Flex Fuel
- Other Names: Fuel Pump, Fuel Pump Assembly, Module
- Item Dimensions: 16.6 x 17.0 x 15.6 inches
- Item Weight: 4.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 88965801, 19133544, 19167711
- Part Description: 2005 Chevrolet Suburban 1500 Module
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | Base, LS, LT, LTZ, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
$288.97 MSRP:$545.24You Save: $256.27 (48%)
Delphi® Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: FG0809Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 30 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604197943
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2005 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$271.01
Autobest® Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: F2717AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 12.5
- Average Flow Rating(GPH): 52.9
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 82.7
- Minimum Pump Pressure (PSI): 76.9
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.89
- Product Length (in): 10.55
- Product Width (in): 9.96
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 248
- Resistance Ohms Full: 38
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127174
- Voltage: 12V
- Weight (lbs): 3.64
- Wire Harness Included: No
- Part Description: 2005 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$114.11
Delphi® Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: FG0815Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604200506
- Vapor Pressure Sensor: No
- Voltage: 13.0 VDC
- Part Description: 2005 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$203.23
Autobest® Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: F2621AProduct Specifications- Notes: Due To A Design Change By The OE Supplier The F2621A Module Assembly May Look Different Than The Module Assembly You Are Replacing But It Will Fit And Function Correctly;Includes Fuel Pump, Fuel Pressure Regulator, Tank Pressure Sensor, Sending Unit
- Average Current Draw(A): 11.5
- Average Flow Rating(GPH): 46.2
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 59.5
- Minimum Pump Pressure (PSI): 53.7
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.25
- Product Length (in): 11.02
- Product Width (in): 11.02
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845126214
- Voltage: 12V
- Weight (lbs): 3.87
- Wire Harness Included: No
- Part Description: 2005 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$114.44
OEM (Genuine) 2005 Chevrolet Suburban 1500 Module
PartNumber: 19370396
Product Specifications- Notes: Gas; Suburban, Yukon Xl; 1/2 Ton; 1500 Series, W/O Flex Fuel
- Other Names: Fuel Pump, Module
- Item Dimensions: 7.4 x 18.3 x 10.7 inches
- Item Weight: 4.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 89060651, 19207718, 88983122, 88983254, 88965555, 19149059, 19256622, 19168774
- Part Description: 2005 Chevrolet Suburban 1500 Module
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | Base, LS, LT, LTZ, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
$293.40 MSRP:$616.40You Save: $323.00 (53%)

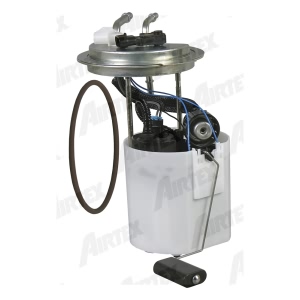

Airtex® In-Tank Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: E3706MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 0ADA3E85831
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 65
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3706M
- Minimum Pressure (psi): 60.0
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044017813
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2005 Chevrolet Suburban 1500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L

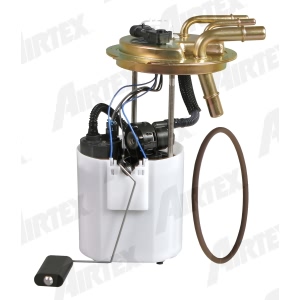

Airtex® In-Tank Fuel Pump Module Assembly for 2005 Chevrolet Suburban 1500
PartNumber: E3610MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 2811EAA3455
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 140
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3610M
- Minimum Pressure (psi): 60.0
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044014010
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2005 Chevrolet Suburban 1500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
