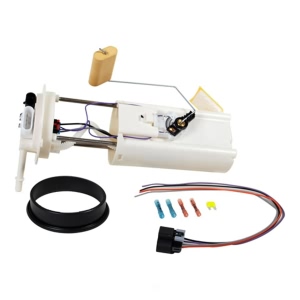

Delphi® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: FG0287Product Specifications- Notes: Updated design w/Check Valve. Can be used to replace fuel pump modules built w/or w/o check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; Original OE design had a 2x2 connector, OE design upgraded to a 1x4 connector; A 1x4 splice kit included for vehicles w/2x2 connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604082485
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$212.41
TYC® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: 150019-AProduct Specifications- Notes: Plastic Fuel Tank
- Accessories Included: yes
- Connector Pins Qty On Main Connector: 4PINS
- Fuel Level Sensor Resitance Range: 39-250
- Fuel Tube Connection Type: Quick Connect
- GPH (Gallons Per Hour Flow): 48.6-57.7
- Maximum Air Pressure: 79.75-123.25
- OE Part Number: 15207041
- Strainer Included: yes
- UPC: 762405824154
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$84.39
Airtex® In-Tank Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: E3992MProduct Specifications- Notes: with Harness;Includes Seal;Turbine Pump Technology
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 70
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect, Return Line
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044516569
- Warranty: Lifetime Limited Warranty
- Part Description: 2005 Chevrolet Blazer In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$105.63
Autobest® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: F2570AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal or External: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 62.1
- Maximum Pump Pressure (PSI): 101.5
- Minimum Free Flow (GPH): 54.2
- Minimum Pump Pressure (PSI): 72.5
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.89
- Product Length (in): 12.6
- Product Width (in): 7.99
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125705
- Voltage: 12V
- Weight (lbs): 2.26
- Wire Harness Included: Yes
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$70.48
Delphi® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: FG0286Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604082478
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$201.17
Autobest® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: F2903AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal or External: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 71.5
- Maximum Pump Pressure (PSI): 145
- Minimum Free Flow (GPH): 60.7
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 8.66
- Product Length (in): 12.6
- Product Width (in): 8.66
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845129031
- Voltage: 12V
- Weight (lbs): 2.21
- Wire Harness Included: Yes
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
$66.56
OEM (Genuine) 2005 Chevrolet Blazer Module
PartNumber: 19331247
Product Specifications- Other Names: Fuel Pump, Module
- Item Dimensions: 8.1 x 6.1 x 16.3 inches
- Item Weight: 4.40 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 19369892
- Part Description: 2005 Chevrolet Blazer Module
Vehicle Fitment- 2005 Chevrolet Blazer | Base, LS, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
$316.26 MSRP:$596.75You Save: $280.49 (48%)
OEM (Genuine) 2005 Chevrolet Blazer Fuel Sender Assembly
PartNumber: 15207043Product Specifications- Notes: S-Series; 4.3l; Blazer/Jimmy/Bravada; 2 Door; S-Blazer/Jimmy; 2 Door
- Other Names: Fuel Gauge Sending Unit, Fuel Pump
- Item Dimensions: 8.3 x 15.6 x 10.5 inches
- Item Weight: 3.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 15038405, 15762974
- Part Description: 2005 Chevrolet Blazer Fuel Sender Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | Base, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
Denso® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: 953-5125Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 27D7C42B03B
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5125
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511171053
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
Vehicle Fitment- 2005 Chevrolet Blazer | All Trims | 6 Cyl 4.3L
Autobest® Fuel Pump Module Assembly for 2005 Chevrolet Blazer
PartNumber: HP2903AProduct Specifications- Gasket or Seal Included: Yes
- Height (in.): 10.4
- Inlet Size: 0.362
- Inlet Type: Strainer
- Internal or External: Internal
- Length (in.): 13.6
- Life Cycle Status Code: Superseded
- Maximum Free Flow (GPH): 82.225
- Maximum Pump Pressure (PSI): 145
- Minimum Free Flow (GPH): 69.805
- Minimum Pump Pressure (PSI): 87
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Package Contents: Pump & Module
- Pump Type: Turbine
- Regulator Included: No
- Short Description: High Performance Fuel Pump
- Superseded To: F2903A
- UPC: 072845169037
- Weight (lbs.): 4
- Width (in.): 6.9
- Part Description: 2005 Chevrolet Blazer Fuel Pump Module Assembly
