Delphi® Fuel Pump Module Assembly for 2004 Pontiac Grand Prix
PartNumber: FG0444Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 17 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604166956
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2004 Pontiac Grand Prix Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Grand Prix | All Trims | All Engines
$255.32
Autobest® Fuel Pump Module Assembly for 2004 Pontiac Grand Prix
PartNumber: F2575AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Reservoir, Fuel Strainer and Upgraded Wiring Harness
- Average Current Draw(A): 7.5
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal or External: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 56.8
- Maximum Pump Pressure (PSI): 58
- Minimum Free Flow (GPH): 48.8
- Minimum Pump Pressure (PSI): 55.1
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.01
- Product Length (in): 12.48
- Product Width (in): 7.2
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125750
- Voltage: 12V
- Weight (lbs): 2.39
- Wire Harness Included: Yes
- Part Description: 2004 Pontiac Grand Prix Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L
$89.93
OEM (Genuine) 2004 Pontiac Grand Prix Fuel Pump
PartNumber: 19180112
Product Specifications- Notes: 3.8 Liter, W/Supercharged
- Other Names: Fuel Pump, Sending Unit
- Item Dimensions: 8.5 x 6.4 x 16.8 inches
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 89060196, 25358348
- Replaced by: 19369911
- Part Description: 2004 Pontiac Grand Prix Fuel Pump
Vehicle Fitment- 2004 Pontiac Grand Prix | GTP | 6 Cyl 3.8 L GAS
$234.78 MSRP:$443.00You Save: $208.22 (48%)
Delphi® Fuel Pump Module Assembly for 2004 Pontiac Grand Prix
PartNumber: FG1003Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604197813
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 2004 Pontiac Grand Prix Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Grand Prix | All Trims | All Engines
$252.51
Autobest® Fuel Pump Module Assembly for 2004 Pontiac Grand Prix
PartNumber: F2576AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Pressure Regulator, Fuel Reservoir, Fuel Strainer and Upgraded Wiring Harness
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal or External: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 62
- Maximum Pump Pressure (PSI): 58
- Minimum Free Flow (GPH): 54.1
- Minimum Pump Pressure (PSI): 55.1
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.01
- Product Length (in): 12.32
- Product Width (in): 7.2
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125767
- Voltage: 12V
- Weight (lbs): 2.37
- Wire Harness Included: Yes
- Part Description: 2004 Pontiac Grand Prix Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L
$80.69OEM (Genuine) 2004 Pontiac Grand Prix Fuel Pump
PartNumber: 19332079Product Specifications- Notes: 3.8 Liter, W/O Supercharged
- Other Names: Fuel Pump, Sending Unit
- Item Dimensions: 16.7 x 8.3 x 5.9 inches
- Item Weight: 3.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 25358346, 19180111, 89060195
- Part Description: 2004 Pontiac Grand Prix Fuel Pump
Vehicle Fitment- 2004 Pontiac Grand Prix | GT1, GT2 | 6 Cyl 3.8 L GAS

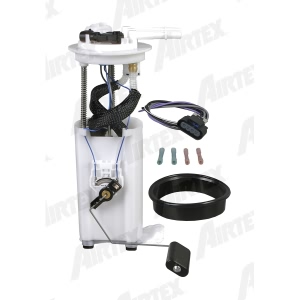

Airtex® Electric Fuel Pump for 2004 Pontiac Grand Prix
PartNumber: E3565MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): EBFCBF98A63
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3565M
- Minimum Pressure (psi): 50.0
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044013853
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2004 Pontiac Grand Prix Electric Fuel Pump
Vehicle Fitment- 2004 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L
