Notes: with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 7
Flow Rating: 22 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 94.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 1
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 81.0
Resistance Ohms Full: 6.0
Strainer Included: Yes
System Pressure: 51 psi
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: Blade
UPC: 689604265260
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

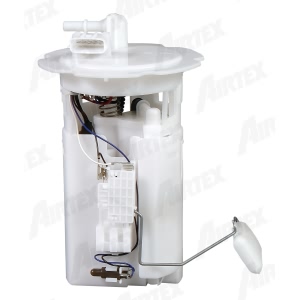

Part Description: 2004 Nissan Altima Fuel Pump Module Assembly
Notes: without California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 23 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 80.0
Resistance Ohms Full: 5.0
Strainer Included: Yes
System Pressure: 48 psi
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: Blade
UPC: 689604214589
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 2004 Nissan Altima Fuel Pump Module Assembly
Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Exc. California
Average Current Draw(A): 3.9
Average Flow Rating(GPH): 11.8
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Fuel Type: Turbine
Gasket or Seal Included: No
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.314
Inlet Type: Strainer
Installation Warnings: No
Internal or External: Internal
Internal Or External Strainer: Internal
Lock Ring Included: No
Maximum Free Flow (GPH): 47.5
Maximum Pump Pressure (PSI): 53.65
Minimum Free Flow (GPH): 39.6
Minimum Pump Pressure (PSI): 50.75
Negative Ground: Yes
Outlet Quantity: 1
Outlet Size: 0.374
Outlet Type: Quick Connect
Product Height (in): 5.41
Product Length (in): 10.35
Product Width (in): 8.84
Pump Type: Turbine
Regulator Included: Yes
Resistance Ohms Empty: 81
Resistance Ohms Full: 4
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: PIN
UPC: 00072845145567
Voltage: 12V
Weight (lbs): 2.3
Wire Harness Included: No
Part Description: 2004 Nissan Altima Fuel Pump Module Assembly
