Notes: OE improved design on pivot point for fuel level Assy; fit & function to OE specifications; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 9
Flow Rating: 30 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 55 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604197936
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC

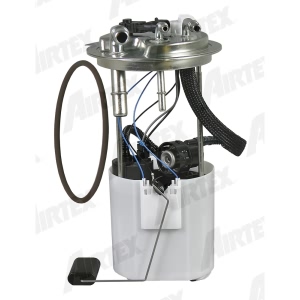

Part Description: 2004 GMC Yukon Fuel Pump Module Assembly
Notes: Due To A Design Change By OE F2592A Assembly May Look Different But It Will Fit And Function Correctly;Includes Fuel Pump, Fuel Pressure Regulator, Tank Pressure Sensor, Sending Unit, Float, Reservoir, Strainer, Tank Seal
Gasket or Seal Included: Yes
Inlet Size: 0.433
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 65
Maximum Pump Pressure (PSI): 100
Minimum Free Flow (GPH): 55
Minimum Pump Pressure (PSI): 80
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: Yes
UPC: 072845125927
Part Description: 2004 GMC Yukon Fuel Pump Module Assembly
Notes: OE improved design on pivot point for fuel level Assy; fit & function to OE specifications; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 33 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 78.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 51 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604197950
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2004 GMC Yukon Fuel Pump Module Assembly
