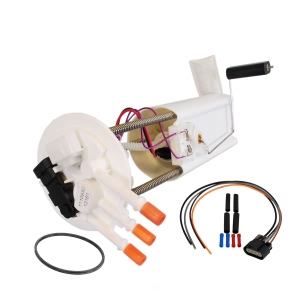

Delphi® Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: FG0288Product Specifications- Notes: Updated design w/Check Valve. Can be used to replace fuel pump modules built w/or w/o check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; Original OE design had a 2x2 connector, OE design upgraded to a 1x4 connector; A 1x4 splice kit included for vehicles w/2x2 connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 131.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604082492
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2004 GMC Safari Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
$220.01

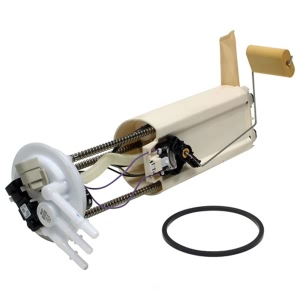

Airtex® In-Tank Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: E3506MProduct Specifications- Notes: without Robust Fuel System Sender
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure Rate (psi): 95
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 85
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044528302
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 GMC Safari In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
$102.29
Autobest® Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: F2517AProduct Specifications- Notes: Except Export;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 7
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.77
- Product Length (in): 14.57
- Product Width (in): 7.6
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125170
- Voltage: 12V
- Weight (lbs): 2.34
- Wire Harness Included: Yes
- Part Description: 2004 GMC Safari Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
$66.56
TYC® Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: 150005-AProduct Specifications- Notes: Exc Export Models
- Accessories Included: yes
- Connector Pins Qty On Main Connector: 4 Pins
- Fuel Level Sensor Resitance Range: 40-250
- Fuel Tube Connection Type: Quick Connect
- GPH (Gallons Per Hour Flow): 48.6-57.7
- Max Pressure (psi): 72.5-130.5
- OE Part Number: 88965569
- Strainer Included: yes
- UPC: 762405824048
- Part Description: 2004 GMC Safari Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
$83.03
OEM (Genuine) 2004 GMC Safari Fuel Pump
PartNumber: 19369901Product Specifications- Notes: Astro, Safari; 4.3l; Cpi, Mpi
- Other Names: Fuel Pump
- Item Dimensions: 8.2 x 6.1 x 20.6 inches
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19331252, 88965574, 19180093, 25347149
- Part Description: 2004 GMC Safari Fuel Pump
Vehicle Fitment- 2004 GMC Safari | Base, SLE, SLT | 6 Cyl 4.3 L GAS
$308.95 MSRP:$582.94You Save: $273.99 (48%)
OEM (Genuine) 2004 GMC Safari Fuel Pump Assembly
PartNumber: 88965569
Product Specifications- Notes: 2000-05
- Other Names: Fuel Pump Assembly
- Item Dimensions: 25.5 x 7.9 x 8.1 inches
- Item Weight: 1.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 15036173, 15205678, 15762279
- Part Description: 2004 GMC Safari Fuel Pump Assembly
Vehicle Fitment- 2004 GMC Safari | Base, SLE, SLT | 6 Cyl 4.3 L GAS
Denso® Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: 953-0029Product Specifications- Notes: w/o Robust Fuel System; DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 2A3D266EB14
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0029
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193475
- Part Description: 2004 GMC Safari Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
Denso® Fuel Pump Module Assembly for 2004 GMC Safari
PartNumber: 953-5072Product Specifications- Notes: w/o Robust Fuel System - Sell out reorder 953-0029
- Gaskets Included: Yes
- Internet Product Code (IPC): F21C7C50DE6
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5072
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163867
- Part Description: 2004 GMC Safari Fuel Pump Module Assembly
Vehicle Fitment- 2004 GMC Safari | All Trims | 6 Cyl 4.3L
