2004 Ford Expedition
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
OEM (Genuine) 2004 Ford Expedition Fuel Pump
PartNumber: 2L1Z-9H307-CJ
Product Specifications- Notes: 4.6l
- Item Dimensions: 6.9 x 8.9 x 13.1 inches
- Item Weight: 3.90 Pounds
- Replaces: 2L1Z-9H307-CH, PFS-454
- Part Description: 2004 Ford Expedition Fuel Pump
Vehicle Fitment- 2004 Ford Expedition | Eddie Bauer, NBX, XLS, XLT, XLT Sport | 8 Cyl 4.6 L GAS
$258.32 MSRP:$430.91You Save: $172.59 (41%)
Delphi® Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: FG0860Product Specifications- Notes: Install quick-connect retainer clips to vehicle side of the line prior to attaching to fuel module; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 40 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604202920
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Ford Expedition Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 5.4L
$253.21

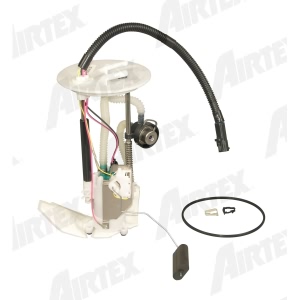

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: E2361MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 95
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044012061
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Ford Expedition In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 4.6L
$135.25
Autobest® Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: F1372AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Pressure Regulator, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 42.3
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Round
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 57
- Minimum Pump Pressure (PSI): 53
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.87
- Product Length (in): 12.28
- Product Width (in): 10.24
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 16
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845113726
- Voltage: 12V
- Weight (lbs): 2.32
- Wire Harness Included: No
- Part Description: 2004 Ford Expedition Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 4.6L
$93.60
Delphi® Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: FG0862Product Specifications- Notes: Install quick-connect retainer clips to vehicle side of the line prior to attaching to fuel module; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 23 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604202944
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Ford Expedition Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 4.6L
$184.79
Autobest® Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: F1371AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Pressure Regulator, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 42.3
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Round
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 57
- Minimum Pump Pressure (PSI): 53
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 8.27
- Product Length (in): 12.28
- Product Width (in): 8.46
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 16
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845113719
- Voltage: 12V
- Weight (lbs): 2.44
- Wire Harness Included: No
- Part Description: 2004 Ford Expedition Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 5.4L
$84.01
Airtex® In-Tank Fuel Pump Module Assembly for 2004 Ford Expedition
PartNumber: E2360MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044004837
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Ford Expedition In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Ford Expedition | All Trims | 8 Cyl 5.4L
OEM (Genuine) 2004 Ford Expedition Fuel Pump
PartNumber: 2L1Z-9H307-BGProduct Specifications- Notes: 5.4l
- Item Dimensions: 8.2 x 10.6 x 14.6 inches
- Item Weight: 5.20 Pounds
- Replaces: 2L1Z-9H307-BF
- Part Description: 2004 Ford Expedition Fuel Pump
Vehicle Fitment- 2004 Ford Expedition | Eddie Bauer, NBX, XLT, XLT Sport | 8 Cyl 5.4 L GAS
OEM (Genuine) 2004 Ford Expedition Fuel Pump
PartNumber: 2LZ9H307AA
Product Specifications- Notes: Expedition; 2WD; All
- Part Description: 2004 Ford Expedition Fuel Pump
Vehicle Fitment- 2004 Ford Expedition | Eddie Bauer, NBX, XLS, XLT, XLT Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
