Delphi® Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: FG1114Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 14 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 60 psi
- Terminal Gender: Female
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604222140
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Ford Focus Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.3L
$145.59
Autobest® Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: F1379AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 37
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.75
- Product Length (in): 11.02
- Product Width (in): 9.84
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 15
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Female
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845113795
- Voltage: 12V
- Weight (lbs): 2.25
- Wire Harness Included: No
- Part Description: 2003 Ford Focus Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.3L
$80.40
Delphi® Fuel Pump And Strainer Set for 2003 Ford Focus
PartNumber: FE0216Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 32 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 90.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604034842
- Voltage: 12.0 VDC
- Wiring Harness Included: Yes
- Part Description: 2003 Ford Focus Fuel Pump And Strainer Set
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.3L
$141.17
Autobest® Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: F1337AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 48
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 5.51
- Product Length (in): 11.81
- Product Width (in): 8.66
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 15
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845113375
- Voltage: 12V
- Weight (lbs): 2.05
- Wire Harness Included: No
- Part Description: 2003 Ford Focus Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.0L
$79.86
Delphi® Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: FG1342Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 75 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Female Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 65 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604233061
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Ford Focus Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.0L
$136.46
Autobest® Fuel Pump and Strainer Set for 2003 Ford Focus
PartNumber: F1397Product Specifications- Notes: Includes Tank Seal and Fuel Strainers
- Average Current Draw(A): 10.5
- Average Flow Rating(GPH): 205
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.36
- Outlet Type: Male tube / 1 barb
- Product Height (in): 1.5
- Product Length (in): 4.51
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845113979
- Voltage: 12V
- Weight (lbs): 0.77
- Part Description: 2003 Ford Focus Fuel Pump and Strainer Set
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.0L
$26.98
Delphi® Fuel Pump And Strainer Set for 2003 Ford Focus
PartNumber: FE0443Product Specifications- Notes: Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 38 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 103.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 45 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604202463
- Voltage: 13.5 VDC
- Wiring Harness Included: Yes
- Part Description: 2003 Ford Focus Fuel Pump And Strainer Set
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.0L
$103.17

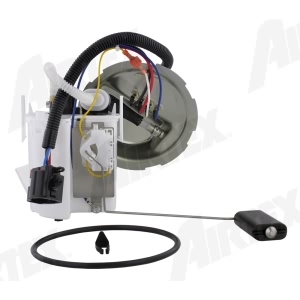

Airtex® In-Tank Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: E2326MProduct Specifications- Notes: From 09/04/2003
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Hose Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044013631
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Ford Focus In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.0L
OEM (Genuine) 2003 Ford Focus Fuel Pump
PartNumber: 2M5Z-9H307-AD
Product Specifications- Other Names: Fuel Gauge Sending Unit, Fuel Pump, Sending Unit
- Item Dimensions: 10.2 x 5.9 x 8.0 inches
- Item Weight: 3.00 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2003 Ford Focus Fuel Pump
Vehicle Fitment- 2003 Ford Focus | LX, SE, SVT, ZTS, ZTW, ZX3, ZX5 | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS

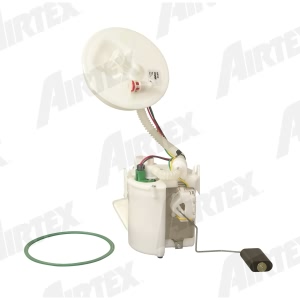

Airtex® In-Tank Fuel Pump Module Assembly for 2003 Ford Focus
PartNumber: E2368MProduct Specifications- Notes: From 09/04/2003
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 9B8EB492009
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 75
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2368M
- Minimum Pressure (psi): 70.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044017394
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2003 Ford Focus In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.3L
Autobest® Electric Fuel Pump for 2003 Ford Focus
PartNumber: F1370Product Specifications- Notes: Strainers included with pump,Includes Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 155
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.43
- Inlet Type: filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 105
- Minimum Pump Pressure (PSI): 95
- Outlet Quantity: 1
- Outlet Size: 0.35
- Outlet Type: Male Quick Connect
- Product Height (in): 1.46
- Product Length (in): 4.88
- Product Width (in): 1.46
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845113702
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 2003 Ford Focus Electric Fuel Pump
Vehicle Fitment- 2003 Ford Focus | All Trims | 4 Cyl 2.3L
