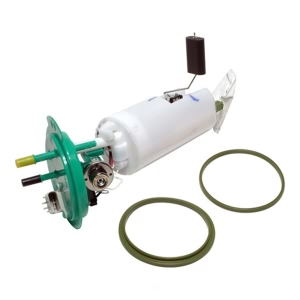

Delphi® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: FG0425Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 59.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 1055.0
- Resistance Ohms Full: 70.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604139585
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.8L
$149.04
Autobest® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: F3147AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 27.8
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.504
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 62.4
- Minimum Pump Pressure (PSI): 59.5
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.35
- Product Length (in): 15.16
- Product Width (in): 6.3
- Pump Type: Rollervane
- Regulator Included: Yes
- Resistance Ohms Empty: 102
- Resistance Ohms Full: 8
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131478
- Voltage: 12V
- Weight (lbs): 2.4
- Wire Harness Included: No
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
$73.15
Delphi® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: FG0483Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 1050.0
- Resistance Ohms Full: 70.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604187784
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
$128.71
Autobest® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: F3155AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 27.8
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.504
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 62.4
- Minimum Pump Pressure (PSI): 59.5
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.35
- Product Length (in): 15.98
- Product Width (in): 6.3
- Pump Type: Rollervane
- Regulator Included: Yes
- Resistance Ohms Empty: 1050
- Resistance Ohms Full: 70
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131553
- Voltage: 12V
- Weight (lbs): 2.39
- Wire Harness Included: No
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.8L
$83.26
OEM (Genuine) 2003 Chrysler Town & Country Module Ki-Fuel Pump/Level Unit
PartNumber: 5101830AC
Product Specifications- Notes: W/Flex Fuel
- Other Names: Fuel Pump Assembly
- Replaces: 5101830AA, 5018875AB, 5101830AB, RL101830AC, RL101830AB
- Part Description: 2003 Chrysler Town & Country Module Ki-Fuel Pump/Level Unit
Vehicle Fitment- 2003 Chrysler Town & Country | Base, EL, EX, Limited, LX, LXi | 6 Cyl 3.3 L FLEX
$329.27 MSRP:$495.00You Save: $165.73 (34%)
Airtex® In-Tank Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: E7146MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044538073
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Chrysler Town & Country In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
Airtex® In-Tank Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: E7144MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044531531
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Chrysler Town & Country In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.8L
OEM (Genuine) 2003 Chrysler Town & Country Fuel Pump/Level Module Kit
PartNumber: RL096149ABProduct Specifications- Notes: W/O Flex Fuel
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 23.7 x 8.4 x 7.0 inches
- Item Weight: 3.20 Pounds
- Replaces: 5096149AB, 5018873AB, 5096149AA
- Part Description: 2003 Chrysler Town & Country Fuel Pump/Level Module Kit
Vehicle Fitment- 2003 Chrysler Town & Country | Base, EL, EX, Limited, LX, LXi | 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
Denso® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: 953-3037Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 0BA14A232A9
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3037
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511106024
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.8L
Denso® Fuel Pump Module Assembly for 2003 Chrysler Town & Country
PartNumber: 953-3047Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 54E7FEC6C6B
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3047
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511163065
- Part Description: 2003 Chrysler Town & Country Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chrysler Town & Country | All Trims | 6 Cyl 3.3L
