2003 Chevrolet Suburban 1500
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
OEM (Genuine) 2003 Chevrolet Suburban 1500 Module
PartNumber: 19331260
Product Specifications- Other Names: Fuel Pump, Module
- Item Dimensions: 17.1 x 8.3 x 5.9 inches
- Item Weight: 2.90 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 19369909
- Part Description: 2003 Chevrolet Suburban 1500 Module
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | LS, LT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
$283.16 MSRP:$534.28You Save: $251.12 (48%)
Dorman® Fuel Tank Sending Unit for 2003 Chevrolet Suburban 1500
PartNumber: 2630376Product Specifications- Connector Color: White
- Connector Gender: Female
- Connector Shape: Flat Plug
- Height: 194 mm
- Housing Length: 150 mm
- Housing Material: Plastic (Polybutylene Terephthalate)
- Housing Width: 94 mm
- Inlet Diameter: 7.89 mm
- Inlet Type: Male
- Length: 19.5 mm
- Lock Ring Included: No
- Maximum Flow Rating: 117 LPH
- Maximum Pressure: 0.8 MPA
- OE Part Number: 19180099, 25345024, 25340156
- Outlet Diameter: 9.49 mm
- Outlet Quantity: 1
- Outlet Type: Male
- Seal Included: Yes
- Terminal Gender: Male Female
- Terminal Quantity: 4
- Terminal Type: Spade
- Top Mount Diameter: 6.35 mm
- Universal Or Specific Fit: Specific
- UPC: 747214154432
- Width: 6.35 mm
- Wire Gauge Measurement: 1.5 AWG
- Wire Quantity: 4
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Tank Sending Unit
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | All Engines
$135.88

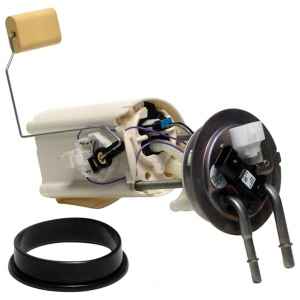

Delphi® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: FG0273Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 32 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604075937
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$203.87
Autobest® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: F2571AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;w/Square Connector
- Average Current Draw(A): 11
- Average Flow Rating(GPH): 43.6
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.65
- Product Length (in): 10.63
- Product Width (in): 10.24
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 41
- Resistance Ohms Full: 251
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125712
- Voltage: 12V
- Weight (lbs): 2.59
- Wire Harness Included: No
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$87.02
Delphi® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: FG0811Product Specifications- Notes: OE improved design on pivot point for fuel level Assy; fit & function to OE specifications; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 33 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604197967
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$197.54

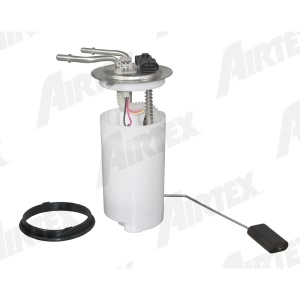

Airtex® In-Tank Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: E3556MProduct Specifications- Notes: w/o Robust Fuel System (RPO Code: K53); Includes Wiring Harness, Terminals & Tank Seal
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044011453
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Chevrolet Suburban 1500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$120.98
Autobest® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: F2567AProduct Specifications- Notes: w/Oblong Connector;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Exc. Export
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 48
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.12
- Product Length (in): 11.02
- Product Width (in): 10.63
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125675
- Voltage: 12V
- Weight (lbs): 2.44
- Wire Harness Included: No
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$77.92
Autobest® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: F2597AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;w/Square Connector;w/Export Robust Fuel System Sender, RPO K53
- Average Current Draw(A):
- Average Flow Rating(GPH):
- Connector Gender:
- Connector Quantity:
- Connector Shape:
- Country of Orign: China
- Fuel Filter Included:
- Fuel Sending Unit Included:
- Fuel Tank Pressure Sensor Included:
- Gasket or Seal Included: Yes
- Gasket Or Seal Material:
- Grade Type:
- Housing Material:
- In Tank or External: In Tank
- Inlet Type: Strainer
- Installation Warnings:
- Internal Or External Strainer:
- Lock Ring Included:
- Maximum Pump Pressure (PSI): 125
- Minimum Pump Pressure (PSI): 115
- Mounting Hardware Included:
- Negative Ground:
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.5
- Product Length (in): 16
- Product Width (in): 10
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty:
- Resistance Ohms Full:
- Strainer Included:
- Terminal Gender:
- Terminal Quantity:
- Terminal Type:
- UPC: 00072845125972
- Voltage:
- Weight (lbs): 2.5
- Wire Harness Included:
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
$91.71
Airtex® In-Tank Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: E3560MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 115
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 100
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044012238
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Chevrolet Suburban 1500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
Denso® Fuel Pump Module for 2003 Chevrolet Suburban 1500
PartNumber: 953-0035Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 366A801AAAF
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0035
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193536
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
OEM (Genuine) 2003 Chevrolet Suburban 1500 Fuel Tank Fuel Pump Module Assembly(Sender & Pump)
PartNumber: 15205629
Product Specifications- Notes: Gas; Suburban, Yukon Xl; Front
- Other Names: Fuel Pump
- Item Dimensions: 8.4 x 13.8 x 11.6 inches
- Item Weight: 2.20 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Tank Fuel Pump Module Assembly(Sender & Pump)
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | LS, LT | 8 Cyl 5.3 L GAS
Denso® Fuel Pump Module Assembly for 2003 Chevrolet Suburban 1500
PartNumber: 953-5105Product Specifications- Notes: Sell out reorder 953-0035
- Gaskets Included: Yes
- Internet Product Code (IPC): 88545F77DA9
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5105
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511164192
- Part Description: 2003 Chevrolet Suburban 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L
