OEM (Genuine) 2002 GMC Yukon Module
PartNumber: 19153713
Product Specifications- Other Names: Fuel Pump, Module
- Item Dimensions: 16.3 x 8.0 x 5.8 inches
- Item Weight: 2.60 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 19369914
- Part Description: 2002 GMC Yukon Module
Vehicle Fitment- 2002 GMC Yukon | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
$258.56 MSRP:$487.85You Save: $229.29 (48%)
Dorman® Fuel Tank Sending Unit for 2002 GMC Yukon
PartNumber: 2630356Product Specifications- Notes: wo/RPO Code K53 (Robust Fuel System Fuel Sender Assy)
- Gasket or Seal Included: Yes
- Module: Yes
- OE Part Number: 19121628, 19153713, 25169302
- Ohms Empty: 0
- Ohms Full: 90
- Package Contents: 1 Fuel Sender
- Plug/Connector Type: Square Female
- Pump Included: Yes
- Terminal Quantity: 4
- Terminal Type: Spade
- UPC: 747214098163
- Wiring Harness Included: Yes
- Part Description: 2002 GMC Yukon Fuel Tank Sending Unit
Vehicle Fitment- 2002 GMC Yukon | All Trims | All Engines
$114.82
Delphi® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: FG0810Product Specifications- Notes: OE improved design on pivot point for fuel level Assy; fit & function to OE specifications; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 33 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604197950
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
$193.71

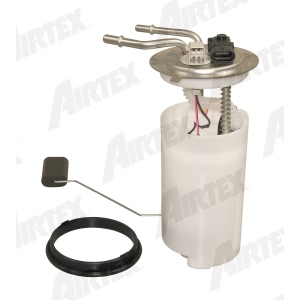

Airtex® In-Tank Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: E3508MProduct Specifications- Notes: Fits Tag Code TDB; Except Export; Turbine Pump Technology; Includes Wiring Harness, Terminals & Tank Seal
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 85
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044515517
- Warranty: Lifetime Limited Warranty
- Part Description: 2002 GMC Yukon In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
$97.74
Autobest® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: F2560AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 11
- Average Flow Rating(GPH): 43.6
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.65
- Product Length (in): 10.63
- Product Width (in): 10.24
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 41
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125606
- Voltage: 12V
- Weight (lbs): 2.58
- Wire Harness Included: No
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
$88.41
Delphi® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: FG0324Product Specifications- Notes: Original OE design had a 2x2 connector, OE design upgraded to a 1x4 connector; A 1x4 splice kit Incld for vehicles w/2x2 connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604084274
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
$179.70
Autobest® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: F2519AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.99
- Product Length (in): 11.02
- Product Width (in): 8.03
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125194
- Voltage: 12V
- Weight (lbs): 2.08
- Wire Harness Included: Yes
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
$66.34
Autobest® High Performance Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: HP2519AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.362
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Product Height (in): 6.9
- Product Length (in): 13.6
- Product Width (in): 10.4
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845165190
- Voltage: 12V
- Weight (lbs): 4
- Wire Harness Included: Yes
- Part Description: 2002 GMC Yukon High Performance Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
$77.32
Denso® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: 953-0030Product Specifications- Notes: Module Code TDB; DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 5167CCC8A9C
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0030
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193482
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
Denso® Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: 953-5111Product Specifications- Notes: Module Code TDB - Sell out reorder 953-0030
- Gaskets Included: Yes
- Internet Product Code (IPC): BDD0390C1AA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5111
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511164253
- Part Description: 2002 GMC Yukon Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 4.8L
- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
- 2002 GMC Yukon | All Trims | 8 Cyl 6.0L
Airtex® In-Tank Fuel Pump Module Assembly for 2002 GMC Yukon
PartNumber: E3559MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 562EDB08A75
- Item Grade: OEM Standard Part
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3559M
- Minimum Pressure (psi): 60.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044005476
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2002 GMC Yukon In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Yukon | All Trims | 8 Cyl 5.3L
