OEM (Genuine) 2002 GMC Envoy XL Fuel Pump
PartNumber: 15050444
Product Specifications- Notes: 2002-04, W/Long Wheel Base; S-Series; 4.2l; 129" Wheelbase
- Other Names: Fuel Gauge Sending Unit, Fuel Pump Assembly
- Item Dimensions: 10.9 x 8.4 x 7.1 inches
- Item Weight: 2.10 Pounds
- Part Description: 2002 GMC Envoy XL Fuel Pump
Vehicle Fitment- 2002 GMC Envoy XL | SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
$205.70 MSRP:$372.32You Save: $166.62 (45%)
Dorman® Fuel Tank Sending Unit for 2002 GMC Envoy XL
PartNumber: 2630353Product Specifications- Connector Color: White
- Connector Gender: Female
- Connector Shape: Flat Plug
- Height: 175 mm
- Housing Length: 120 mm
- Housing Material: Plastic (Polyoxymethylene)
- Housing Width: 94 mm
- Inlet Diameter: 7.89 mm
- Inlet Type: Male
- Length: 19.5 mm
- Lock Ring Included: No
- Maximum Flow Rating: 85 LPH
- Maximum Pressure: 0.8 MPA
- OE Part Number: 88966952, 89966950, 88965822
- Outlet Diameter: 9.49 mm
- Outlet Quantity: 1
- Outlet Type: Male
- Seal Included: Yes
- Terminal Gender: Male Female
- Terminal Quantity: 3
- Terminal Type: Spade
- Top Mount Diameter: 6.35 mm
- Universal Or Specific Fit: Specific
- UPC: 747214044948
- Width: 6.35 mm
- Wire Gauge Measurement: 1.5 AWG
- Wire Quantity: 4
- Part Description: 2002 GMC Envoy XL Fuel Tank Sending Unit
Vehicle Fitment- 2002 GMC Envoy XL | All Trims | 6 Cyl 4.2L
$145.30

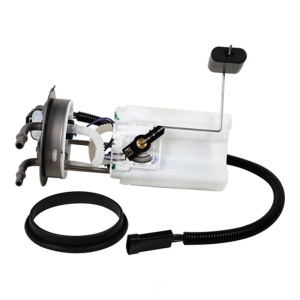

Delphi® Fuel Pump Module Assembly for 2002 GMC Envoy XL
PartNumber: FG0411Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 16 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604164006
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2002 GMC Envoy XL Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Envoy XL | All Trims | 6 Cyl 4.2L
$205.18
Autobest® Fuel Pump Module Assembly for 2002 GMC Envoy XL
PartNumber: F2550AProduct Specifications- Notes: Internal Strainer Included;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 5.8
- Average Flow Rating(GPH): 29
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 50
- Maximum Pump Pressure (PSI): 100
- Minimum Free Flow (GPH): 40
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.69
- Product Length (in): 9.06
- Product Width (in): 6.89
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125507
- Voltage: 12V
- Weight (lbs): 2.19
- Wire Harness Included: No
- Part Description: 2002 GMC Envoy XL Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Envoy XL | All Trims | 6 Cyl 4.2L
$76.25OEM (Genuine) 2002 GMC Envoy XL Fuel Pump
PartNumber: 15077623Product Specifications- Notes: S-Series; 4.2l; 113" Wheelbase; Envoy/Trailblazer; 113" Wheelbase
- Item Dimensions: 10.3 x 9.3 x 6.4 inches
- Item Weight: 3.00 Pounds
- Replaces: 15013514
- Part Description: 2002 GMC Envoy XL Fuel Pump
Vehicle Fitment- 2002 GMC Envoy XL | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
$201.74 MSRP:$366.82You Save: $165.08 (46%)
Airtex® In-Tank Fuel Pump Module Assembly for 2002 GMC Envoy XL
PartNumber: E3549MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 85
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044013501
- Warranty: Lifetime Limited Warranty
- Part Description: 2002 GMC Envoy XL In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Envoy XL | All Trims | 6 Cyl 4.2L
Denso® Fuel Pump Module Assembly for 2002 GMC Envoy XL
PartNumber: 953-5134Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 4EAA1889FE9
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5134
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511171145
- Part Description: 2002 GMC Envoy XL Fuel Pump Module Assembly
Vehicle Fitment- 2002 GMC Envoy XL | All Trims | 6 Cyl 4.2L
