Denso® Engine Coolant Radiator for 2002 Buick Regal
PartNumber: 221-9009Product Specifications- Core Height: 15.0780"
- Core Thickness: 0.6290"
- Core Width: 30.5110"
- Inlet Diameter: 1.3380"
- Outlet Diameter: 1.3380"
- UPC: 042511219496
- Part Description: 2002 Buick Regal Engine Coolant Radiator
Vehicle Fitment- 2002 Buick Regal | All Trims | 6 Cyl 3.8L
$95.59
TYC® Engine Coolant Radiator for 2002 Buick Regal
PartNumber: 2343Product Specifications- Notes: Accessories Incld: Brass Quick Disconnect (Diam. 3/8") x 2 Sensor Plug (PI-1139) x 1; Bottom Header: 2 5/16" x 16 7/16"; Configuration: w/METRIC THREADS; Core Size: 30 1/2" x 15 1/16" x 5/8"; Manufactured Material: Plastic/Alum; Rows: 1; Top Header: 2 5/16" x 16 7/16"
- Accessories Included: Brass Quick Disconnect (Diam. 3/8") x 2 Sensor Plug (PI-1139) x 1
- Bottom Header: 2 5/16" x 16 7/16"
- Configuration: w/ METRIC THREADS
- Core Size: 30 1/2" x 15 1/16" x 5/8"
- Manufactured Material: Plastic/Aluminum
- OE Part Number: 52487052
- Rows: 1
- Top Header: 2 5/16" x 16 7/16"
- UPC: 762405251561
- Part Description: 2002 Buick Regal Engine Coolant Radiator
Vehicle Fitment- 2002 Buick Regal | All Trims | 6 Cyl 3.8L
$103.04

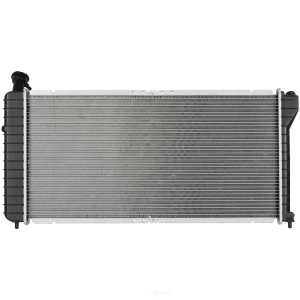

Spectra Premium® Complete Radiator for 2002 Buick Regal
PartNumber: CU2343Product Specifications- Notes: w/5/8" Thick Core; Radiator Cap Is Reqd
- Core Material: Aluminum
- Height: 30 1/2"
- Inlet: 1 5/16"
- Inlet Header: 16 9/16" x 2 7/16"
- Outlet: 1 5/16"
- Outlet Header: 16 9/16" x 2 7/16"
- Row: 1
- Tank Material: Plastic
- Thickness: 5/8"
- TOC: Plated; 11 1/2"
- UPC: 671607730579
- Width: 15 5/16"
- Part Description: 2002 Buick Regal Complete Radiator
Vehicle Fitment- 2002 Buick Regal | All Trims | 6 Cyl 3.8L
$76.82
OEM (Genuine) 2002 Buick Regal Radiator
PartNumber: 89018542
Product Specifications- Notes: All Models; 3.8l; W/O Supercharger; Regal; W/O Supercharger
- Other Names: Radiator
- Item Dimensions: 42.8 x 25.5 x 7.1 inches
- Item Weight: 11.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 52487052, 52478254, 10329499, 88957431
- Part Description: 2002 Buick Regal Radiator
Vehicle Fitment- 2002 Buick Regal | LS, LSE | 6 Cyl 3.8 L GAS
OEM (Genuine) 2002 Buick Regal Radiator Assembly
PartNumber: 89018543
Product Specifications- Notes: All Models; 3.8l; W/Supercharger; Regal; W/Supercharger
- Other Names: Radiator
- Item Dimensions: 7.4 x 43.1 x 24.7 inches
- Item Weight: 8.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 52478255, 88957432, 52487053, 10329500
- Part Description: 2002 Buick Regal Radiator Assembly
Vehicle Fitment- 2002 Buick Regal | GS, GSE | 6 Cyl 3.8 L GAS
Spectra Premium® Complete Radiator for 2002 Buick Regal
PartNumber: CU2351Product Specifications- Notes: w/1" Thick Core; w/o Sensor; Radiator Cap Is Reqd
- Core Material: Aluminum
- Height: 30 1/2"
- Inlet: 1 1/4"
- Inlet Header: 16 9/16" x 2 7/16"
- Outlet: 1 1/4"
- Outlet Header: 16 9/16" x 2 7/16"
- Row: 1
- Tank Material: Plastic
- Thickness: 1"
- TOC: Plated; 11 1/2"
- UPC: 671607742756
- Width: 15"
- Part Description: 2002 Buick Regal Complete Radiator
Vehicle Fitment- 2002 Buick Regal | All Trims | 6 Cyl 3.8L
FAQ for Radiator Repair
Q: What is the removal procedure for the brace in the front fender upper diagonal?
A:
You need to open and support the hood, remove the front fender upper diagonal brace-to-inner fender bolt, the front fender upper diagonal brace-to-radiator support bolts, and the front fender upper diagonal brace.
By Bob
GM Specialist
02/11/2022Q: How to install the brace in the front fender upper diagonal?
A:
You need to install the front fender upper diagonal brace, the bolts to the front fender upper diagonal brace at the radiator support, and the front fender diagonal brace-to-inner fender bolt, and close the hood.
By Bob
GM Specialist
02/11/2022
