Notes: For Towing & Hauling;Use AK64 Air Line Kit To Add Seperate Left and Right Air Shock Fill System If Desired;Except Electronic Adjustable Suspension;Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary
Compressed Length: 14.75"
Dust Shield: Yes
Dust Shield Material: Rubber
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 24.875"
Lower Mounting: Loop Bushing and Sleeve Mount - 0.56" Sleeve ID x 1.688" Sleeve OAL
Stroke Length: 10.125"
UPC: 048598047786
Upper Mounting: Loop Bushing and Sleeve Mount - 0.55"- Sleeve ID x 1.688"- Sleeve OAL

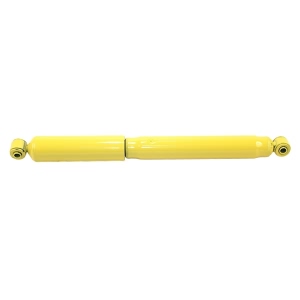

Part Description: 2000 GMC Sierra 1500 Max-Air™ Load Adjusting Rear Shock Absorbers
Notes: Recommended OE Application -Specific Replacement;Except Electronic Adjustable Suspension;Installation Recommended with Wheels on the Ground;without Z71 Off Road Package
Compressed Bumper Stop: No
Compressed Length: 11.00"
Dust Shield: Yes
Dust Shield Material: Metal
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 15.125"
Lower Mounting: Special Mount
Stroke Length: 4.125"
UPC: 048598156419
Upper Mounting: Stem Mount - 2.375" Stem Length x 0.375"-16 Thread Pitch

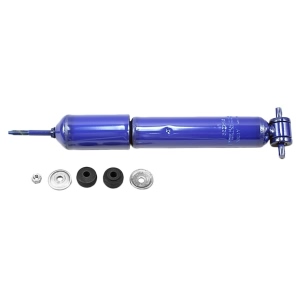

Part Description: 2000 GMC Sierra 1500 OESpectrum™ Front Driver or Passenger Side Monotube Shock Absorber
Notes: Installation Recommended with Wheels on the Ground;without Z71 Off Road Package;Except Electronic Adjustable Suspension;Premium - Limited Lifetime Warranty
Compressed Length: 11.00"
Dust Shield: Yes
Dust Shield Material: Metal
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 15.125"
Lower Mounting: Special Mount
Stroke Length: 4.125"
UPC: 048598050618
Upper Mounting: Stem Mount - 2.375" Stem Length x 0.375"-16 Thread Pitch
Part Description: 2000 GMC Sierra 1500 Gas-Magnum™ Front Driver or Passenger Side Shock Absorber
