Delphi® Fuel Pump Module Assembly for 1999 Ford Mustang
PartNumber: FG0826Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Female
- Terminal Quantity: 7
- Terminal Type: Pin
- UPC: 689604200933
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 1999 Ford Mustang Fuel Pump Module Assembly
Vehicle Fitment- 1999 Ford Mustang | All Trims | All Engines
$147.00
Autobest® Fuel Pump Module Assembly for 1999 Ford Mustang
PartNumber: F1255AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 45
- Connector Gender: MaleFemale
- Connector Quantity: 2
- Connector Shape: Rectangle+Round
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.48
- Product Length (in): 13.78
- Product Width (in): 9.84
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 15
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: MaleFemale
- Terminal Quantity: 10
- Terminal Type: PIN
- UPC: 00072845112552
- Voltage: 12V
- Weight (lbs): 2.75
- Wire Harness Included: No
- Part Description: 1999 Ford Mustang Fuel Pump Module Assembly
Vehicle Fitment- 1999 Ford Mustang | All Trims | 6 Cyl 3.8L
- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
$87.12
Delphi® Fuel Pump And Strainer Set for 1999 Ford Mustang
PartNumber: FE0443Product Specifications- Notes: Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 38 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 103.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 45 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604202463
- Voltage: 13.5 VDC
- Wiring Harness Included: Yes
- Part Description: 1999 Ford Mustang Fuel Pump And Strainer Set
Vehicle Fitment- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
- 1999 Ford Mustang | All Trims | 6 Cyl 3.8L
$103.17
Airtex® In-Tank Fuel Pump and Strainer Set for 1999 Ford Mustang
PartNumber: E2366Product Specifications- Notes: Incls Tank Seal; Strainers Incld w/pump.;Strainers Incld w/pump.
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 120
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 100
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: Hose Barb
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044011071
- Warranty: Lifetime Limited Warranty
- Part Description: 1999 Ford Mustang In-Tank Fuel Pump and Strainer Set
Vehicle Fitment- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
$61.91
Autobest® Fuel Pump and Strainer Set for 1999 Ford Mustang
PartNumber: F1377Product Specifications- Notes: Includes Tank Seal and Fuel Strainers
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 155
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.35
- Outlet Type: Male Quick Connect
- Product Height (in): 1.46
- Product Length (in): 4.88
- Product Width (in): 1.46
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845113771
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 1999 Ford Mustang Fuel Pump and Strainer Set
Vehicle Fitment- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
- 1999 Ford Mustang | All Trims | 6 Cyl 3.8L
$25.42
Autobest® High Performance Fuel Pump And Strainer Set for 1999 Ford Mustang
PartNumber: HP1377Product Specifications- Notes: Includes Tank Seal and Fuel Strainers
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 155
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: Yes
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 2.5
- Product Length (in): 6.5
- Product Width (in): 4
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845153777
- Voltage: 12V
- Weight (lbs): 2
- Part Description: 1999 Ford Mustang High Performance Fuel Pump And Strainer Set
Vehicle Fitment- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
- 1999 Ford Mustang | All Trims | 6 Cyl 3.8L
$27.64

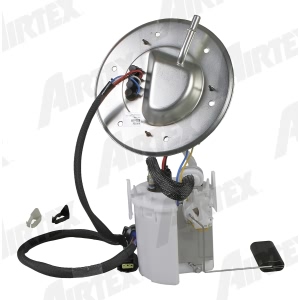

Airtex® In-Tank Fuel Pump Module Assembly for 1999 Ford Mustang
PartNumber: E2244MProduct Specifications- Notes: w/Pressure Sensor
- Gasket Included: N
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1999 Ford Mustang In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1999 Ford Mustang | All Trims | 6 Cyl 3.8L
- 1999 Ford Mustang | All Trims | 8 Cyl 4.6L
OEM (Genuine) 1999 Ford Mustang Fuel Pump
PartNumber: XR3Z-9H307-AE
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 10.1 x 8.1 x 9.2 inches
- Item Weight: 3.50 Pounds
- Replaces: XR3Z-9H307-AD
- Replaced by: XR3Z-9H307-AF
- Part Description: 1999 Ford Mustang Fuel Pump
Vehicle Fitment- 1999 Ford Mustang | Base, GT, SVT Cobra | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS
OEM (Genuine) 1999 Ford Mustang Fuel Pump
PartNumber: F8ZZ-9H307-AE
Product Specifications- Notes: Mustang; 3.8l
- Item Dimensions: 9.5 x 7.9 x 9.0 inches
- Item Weight: 3.60 Pounds
- Replaces: F8ZZ-9H307-AD
- Part Description: 1999 Ford Mustang Fuel Pump
Vehicle Fitment- 1999 Ford Mustang | Base, GT, SVT Cobra | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS
