Notes: with 35 Gallon Tank;without Fitting for Take-Off Fuel Line;with Cutaway Chassis;with California Emission System;RPO Code NL1;RPO Code NB6;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060452
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC

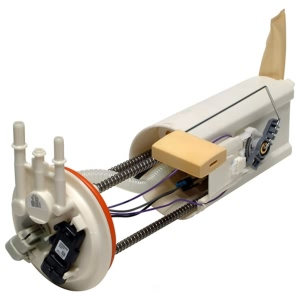

Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L

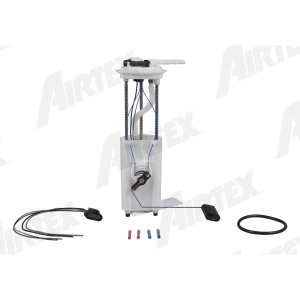

Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Tank Seal and Upgraded Wiring Harness;w/Fuel Fitting For Auxiliary Power Units;Wiring Harness replacement recommended
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 55.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 45
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845125842
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: RPO Code NF4 or NF2;with 55 Gallon Tank;with Federal Emission System;without Fitting for Take-Off Fuel Line;with Cutaway Chassis;RPO Code NE7;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060377
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: w/GVW under 8500lb; w/o Fitting for Take Off Fuel Line (RPO Code: 7T6); Includes Wiring Harness, Terminals & Tank Seal; w/2 Electrical Connectors
Gasket Included: Y
Hazardous Material: No
Inlet Count: 1
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Free Flow Rate (gph): 65
Maximum Pressure Rate (psi): 100
Minimum Free Flow Rate (gph): 55
Minimum Pressure Rate (psi): 80
Outlet Count: 1
Outlet Size: 3/8"
Outlet Type: Quick Connect, Return Line
Package Contents: Pump & Kit
Package Quantity: 1
UPC: 080044516323
Warranty: Lifetime Limited Warranty
Part Description: 1998 Chevrolet Express 3500 In-Tank Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/1 Electrical Connector;w/35 Gallon Tank;w/Module Codes GFG or GFZ
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 63.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 52.8
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845129079
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
Notes: with 35 Gallon Tank;with Cutaway Chassis;without California Emission System;without Fitting for Take-Off Fuel Line;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060469
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/2 Electrical Connectors;w/Module Code VAY;w/o Fuel Fitting For Auxiliary Power Units;w/Pressure Sensor
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 63.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 52.8
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845129826
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: RPO Code NA4, NF4 or NF2;without Fitting for Take-Off Fuel Line;without Evaporative Emission;Except Cutaway Chassis;Module has 1 Electrical Connector(s);with Federal Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060353
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/1 Electrical Connector;w/o Fuel Fitting For Auxiliary Power Units
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 63.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 52.8
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845129772
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: RPO Code EVA;with Evaporative Emission;without Fitting for Take-Off Fuel Line;with California Emission System;Module has 2 Electrical Connector(s);Except Cutaway Chassis;RPO Code NC1;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060360
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC
Part Description: 1998 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 2
Flow Rating: 32 gph
Fuel Type: Diesel
Gasket or Seal Included: No
In Tank or External: External
Inlet Fitting Thread Size: M16-1.5
Inlet Type: Female Threaded
Item Grade: Standard Replacement
Outlet Fitting Thread Size: M16 - 1.5
Outlet Type: Female Threaded
Pump Type: Electric
Strainer Included: No
System Pressure: 7 psi
Terminal Gender: Female
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604032633
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 1998 Chevrolet Express 3500 In Line Electric Fuel Pump
More Info
Vehicle Fitment
1998 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L
