Notes: RPO Code NE7;with 55 Gallon Tank;Strainer is Inside the Module Assembly;55 Gallon Fuel Tank; Actual OE Part;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 0.1
Resistance Ohms Full: 90.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604059715
Vapor Pressure Sensor: No

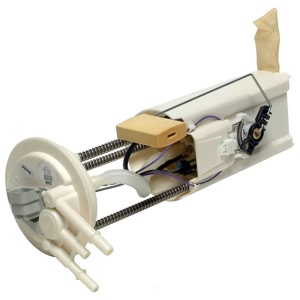

Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L
Notes: Wiring Harness replacement recommended;w/35 Gallon Tank;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/o Fuel Fitting For Auxiliary Power Units
Average Current Draw(A): 8.5
Average Flow Rating(GPH): 41
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Gasket or Seal Included: No
Gasket Or Seal Material: NBR
Grade Type: Regular
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 5/16
Inlet Type: Quick Connect
Installation Warnings: No
Lock Ring Included: No
Maximum Pump Pressure (PSI): 145
Minimum Pump Pressure (PSI): 87
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 6.54
Product Length (in): 13.78
Product Width (in): 9.61
Pump Type: Turbine
Regulator Included: No
Resistance Ohms Empty: 40
Resistance Ohms Full: 250
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845129062
Voltage: 12V
Weight (lbs): 2.16
Wire Harness Included: Yes

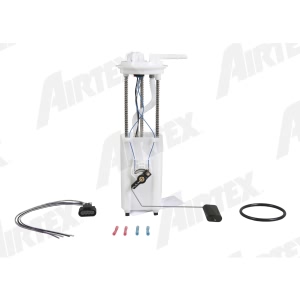

Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
Notes: RPO Code NE7;with Federal Emission System;with 55 Gallon Tank;RPO Code NF4 or NF2;without Fitting for Take-Off Fuel Line;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060377
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/o Fuel Fitting For Auxiliary Power Units
Average Current Draw(A): 7.3
Average Flow Rating(GPH): 35.6
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Regular
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 5/16
Inlet Type: Quick Connect
Installation Warnings: No
Lock Ring Included: No
Maximum Pump Pressure (PSI): 145
Minimum Pump Pressure (PSI): 87
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 6.3
Product Length (in): 13.78
Product Width (in): 7.52
Pump Type: Turbine
Regulator Included: No
Resistance Ohms Empty: 40
Resistance Ohms Full: 250
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845129772
Voltage: 12V
Weight (lbs): 2.19
Wire Harness Included: Yes

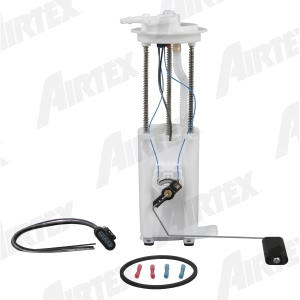

Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: with Fitting for Take-Off Fuel Line;without Evaporative Emission;without Fitting for Take-Off Fuel Line;Module has 1 Electrical Connector(s);Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060353
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
Notes: with 35 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 24 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604059838
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 2
Flow Rating: 32 gph
Fuel Type: Diesel
Gasket or Seal Included: No
In Tank or External: External
Inlet Fitting Thread Size: M16-1.5
Inlet Type: Female Threaded
Item Grade: Standard Replacement
Outlet Fitting Thread Size: M16 - 1.5
Outlet Type: Female Threaded
Pump Type: Electric
Strainer Included: No
System Pressure: 7 psi
Terminal Gender: Female
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604032633
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 1997 Chevrolet Express 3500 In Line Electric Fuel Pump
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L
Notes: with 35 Gal Fuel Tank;Strainer is Inside the Module Assembly;35 Gallon Fuel Tank; Actual OE Part;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 0.1
Resistance Ohms Full: 90.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: Pin
UPC: 689604059692
Vapor Pressure Sensor: No
Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness, and Tank Seal,Cutaway Van;55 Gal. Tank, w/o Fuel Fitting For Auxiliary Power Units
Average Current Draw(A): 8.5
Average Flow Rating(GPH): 41
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Regular
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 5/16
Inlet Type: Quick Connect
Installation Warnings: No
Lock Ring Included: No
Maximum Pump Pressure (PSI): 100
Minimum Pump Pressure (PSI): 80
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 6.54
Product Length (in): 14.37
Product Width (in): 9.13
Pump Type: Turbine
Regulator Included: No
Resistance Ohms Empty: 40
Resistance Ohms Full: 250
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845127716
Voltage: 12V
Weight (lbs): 2.37
Wire Harness Included: Yes
Part Description: 1997 Chevrolet Express 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 7.4L
1997 Chevrolet Express 3500 | All Trims | 8 Cyl 5.7L
