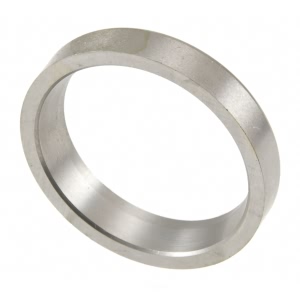

Sealed Power® Engine Valve Seat for 1996 Toyota Avalon
PartNumber: 245-1187-53Product Specifications- Notes: Loc: Exh; Std Size; 1.1945" OD; 0.9350" ID; 0.2350" Depth; 1.1875" Counter Bore; 30.3400MM OD; 23.7490MM ID; 5.9690MM Depth; 30.1630MM Counter Bore; 45 Degree Seat Angle
- Counter Bore: 30.1630
- Counter Bore (Inch): 1.1875
- Depth: 5.9690
- Depth (Inch): 0.2350
- ID: 23.7490
- ID (Inch): 0.9350
- ID Tapered: N
- OD: 30.3400
- OD (Inch): 1.1945
- Seat Angle: 45
- Standard Size: Standard
- UPC: 724956663026
- Part Description: Engine Valve Seat

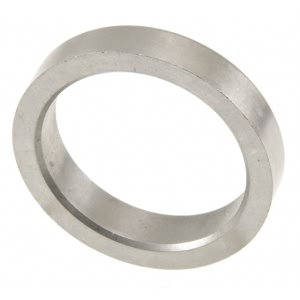

Sealed Power® Engine Valve Seat for 1996 Toyota Avalon
PartNumber: 245-1437-72Product Specifications- Notes: Loc: Int; 1.243" ID top taper; Std Size; 1.4375" OD; 1.1500" ID; 0.2570" Depth; 36.5130MM OD; 29.2100MM ID; 6.5280MM Depth; 45 Degree Seat Angle
- Depth: 6.5280
- Depth (Inch): 0.2570
- ID: 29.2100
- ID (Inch): 1.1500
- ID Tapered: Y
- OD: 36.5130
- OD (Inch): 1.4375
- Seat Angle: 45
- Standard Size: Standard
- UPC: 614046672345
- Part Description: Engine Valve Seat
