1996 Buick Riviera
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
OEM (Genuine) 1996 Buick Riviera Fuel Pump
PartNumber: 19153727
Product Specifications- Notes: Aurora, Riviera; W/O Supercharger
- Other Names: Fuel Sender Unit, Sending Unit
- Item Dimensions: 8.4 x 5.1 x 16.6 inches
- Item Weight: 3.20 Pounds
- Replaces: 25029709, 88962474
- Part Description: Fuel Pump
$223.11 MSRP:$420.98You Save: $197.87 (48%)
Delphi® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: FG0008Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 23 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 0.1
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059456
- Vapor Pressure Sensor: No
- Voltage: 13.0 VDC
- Part Description: Fuel Pump Module Assembly
$168.10
Autobest® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: F2933AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;Recommend to replace Wiring Harness FW909
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 108.75
- Minimum Pump Pressure (PSI): 79.75
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 8.23
- Product Length (in): 12.28
- Product Width (in): 8.78
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 1
- Resistance Ohms Full: 92
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845129338
- Voltage: 12V
- Weight (lbs): 2.51
- Wire Harness Included: Yes
- Part Description: Fuel Pump Module Assembly
$65.56
Delphi® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: FG0031Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 0.1
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059685
- Vapor Pressure Sensor: No
- Voltage: 13.0 VDC
- Part Description: Fuel Pump Module Assembly
$138.50
Autobest® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: F2923AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;Wiring Harness replacement recommended
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.42
- Product Length (in): 12.99
- Product Width (in): 8.82
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 2
- Resistance Ohms Full: 90
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845129239
- Voltage: 12V
- Weight (lbs): 2.33
- Wire Harness Included: Yes
- Part Description: Fuel Pump Module Assembly
$66.90
Denso® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: 953-0005Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 3041834C6FB
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0005
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193239
- Part Description: Fuel Pump Module Assembly

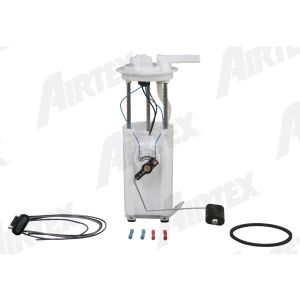

Airtex® In-Tank Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: E3912MProduct Specifications- Notes: Turbine Pump Technology; Includes Tank Seal & Wiring Harness
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect, Return Line
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: In-Tank Fuel Pump Module Assembly
Denso® Fuel Pump Module Assembly for 1996 Buick Riviera
PartNumber: 953-5007Product Specifications- Notes: Sell Out Reorder 953-0005
- Gaskets Included: Yes
- Internet Product Code (IPC): 52F5934280E
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5007
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163218
- Part Description: Fuel Pump Module Assembly
Airtex® Electric Fuel Pump for 1996 Buick Riviera
PartNumber: E3922MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): C89644CFCFE
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 80
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3922M
- Minimum Pressure (psi): 70
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT, RETURN LINE
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044321194
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: Electric Fuel Pump
