Notes: with Harness Code # CAA;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 5
Flow Rating: 37 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Location: In Tank
Pump Type: Electric
Resistance Ohms Empty: 1.0
Resistance Ohms Full: 90.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: Pin
UPC: 689604187364
Voltage: 12.0 VDC

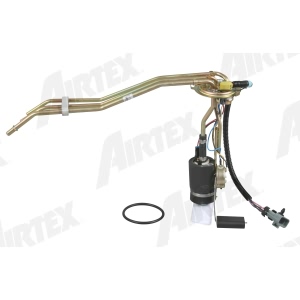

Part Description: 1992 Cadillac Fleetwood Fuel Pump And Sender Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 50 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604034255
Voltage: 12.0 VDC
Wiring Harness Included: Yes
Part Description: 1992 Cadillac Fleetwood Electric Fuel Pump
