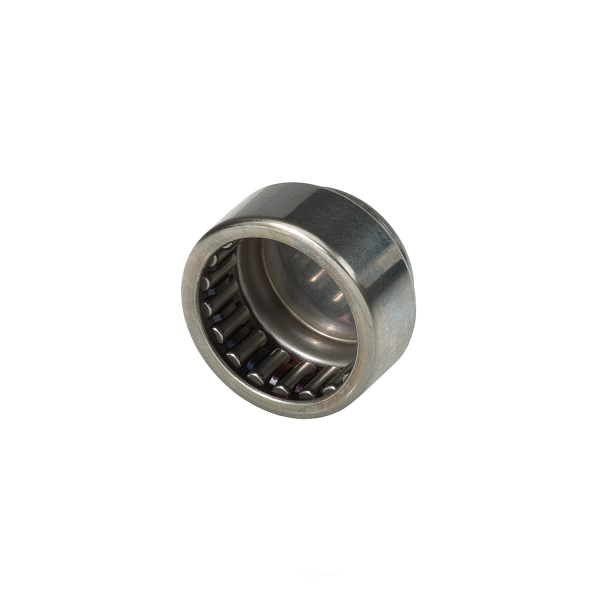

National® Transfer Case Input Shaft Pilot Bearing FC-66561

National Transfer Case Input Shaft Pilot Bearing FC-66561
$14.31
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandNational
    Part NumberFC-66561
    Part DescriptionTransfer Case Input Shaft Pilot Bearing
    Bore (Inch)1.1250
    Bore (mm)28.5750
    Housing Diameter Max (Inch)1.5005
    Housing Diameter Max (mm)38.1127
    Housing Diameter Min (Inch)1.4995
    Housing Diameter Min (mm)38.0873
    Outside Diameter (Inch)1.5000
    Outside Diameter (mm)38.1000
    Shaft Diameter Max (Inch)1.1250
    Shaft Diameter Max (mm)28.5750
    Shaft Diameter Min (Inch)1.1245
    Shaft Diameter Min (mm)28.5623
    TypeFC
    Width (Inch)0.8700
    Width (mm)22.0980
    Warning: California’s Proposition 65
  • Features

    National Transfer Case Input Shaft Pilot Needle Bearing are featured as follows:
    • Constructed to achieve high performance in the transfer case assembly.
    • Designed from materials that will withstand rough off-road drives and heavy loads.
    • Helps with alignment and movement of the idler shaft inside the transfer case.
    • It is resistant to wear and corrosion hence it will last for a long and require less maintenance.
    • This was developed to reduce friction, and noise, thereby enhancing comfort when driving.
    The National Transfer Case Input Shaft Pilot Needle Bearing FC-66561 are a crucial component for any vehicle. Enabling parts to operate smoothly and quietly with minimal friction. Made from quality certified steel. Manufactured using computer controlled heat treatment processes. Ensuring reliable performance and maximum durability. Built to original equipment specifications to guarantee a factory like fit and function. National is a brand of the Federal Mogul Corporation that has a well earned reputation for offering high quality products that meet or exceed original equipment requirements. With modern equipment, technology and expertise, National provides ultimate solutions to meet the needs of today's vehicles. Making it a premier choice for complete wheel end solutions.
    Federal-Mogul Corporation's National, a brand that has been in the automotive, agricultural and industrial markets since 75 years. It is famous for its premium products which are equal to or better than OE standards especially on wheel bearings and oil seals. The company uses most recent technologies and equipment, coupled with its knowledge to achieve the highest standards when designing, manufacturing and testing each product.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1995-2001 AM General HummerAll TrimsAll Engines
    2004-2007 Buick RainierAll TrimsAll Engines
    1999-2000 Cadillac EscaladeAll TrimsAll Engines
    2007-2019 Cadillac EscaladeAll TrimsAll Engines
    2007-2019 Cadillac Escalade ESVAll TrimsAll Engines
    2007-2013 Cadillac Escalade EXTAll TrimsAll Engines
    1999-2005 Chevrolet AstroAll TrimsAll Engines
    2007-2013 Chevrolet AvalancheAll TrimsAll Engines
    2003-2006 Chevrolet Avalanche 1500All TrimsAll Engines
    2003-2006 Chevrolet Avalanche 2500All TrimsAll Engines
