Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Monroe |
Part Number | 911517 |

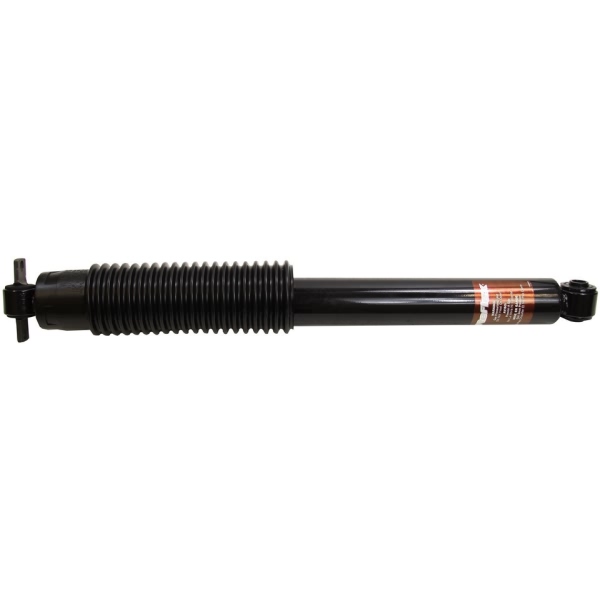

Part Description | Reflex™ Rear Driver or Passenger Side Shock Absorber |
Compressed Length | 14.76" |
Dust Shield | Yes |
Dust Shield Material | Rubber |
Extended Bumper Stop | No |
Extended Hydraulic Lockout | No |
Extended Length | 23.15" |
Lower Mounting | Loop Bushing and Sleeve Mount - 0.563" Sleeve ID x 1.625" Sleeve OAL |
Stroke Length | 8.39" |
UPC | 048598034670 |
Upper Mounting | Cross Pin Mount - Closed Ended, 0.313" Hole ID (Both Ends) x 2.875" Pin Length (Hole Center to Center) |
Year Make Model | Trim | Engine |
---|---|---|
1992-1997 Chevrolet Blazer | All Trims | All Engines |
1998-1999 Chevrolet Blazer | Base | All Engines |
1998-2001 Chevrolet Blazer | LT | All Engines |
1998-2004 Chevrolet Blazer | LS | All Engines |
1999-2001 Chevrolet Blazer | Trailblazer | All Engines |
2001-2005 Chevrolet Blazer | Xtreme | All Engines |
2005 Chevrolet Blazer | Base | All Engines |
1983-1997 Chevrolet S10 | All Trims | All Engines |
1994-1998 Chevrolet S10 | SS | All Engines |
1994-2003 Chevrolet S10 | Base | All Engines |
