Check if it fits by entering your vehicle infoBrand | Monroe |
Part Number | 5527 |

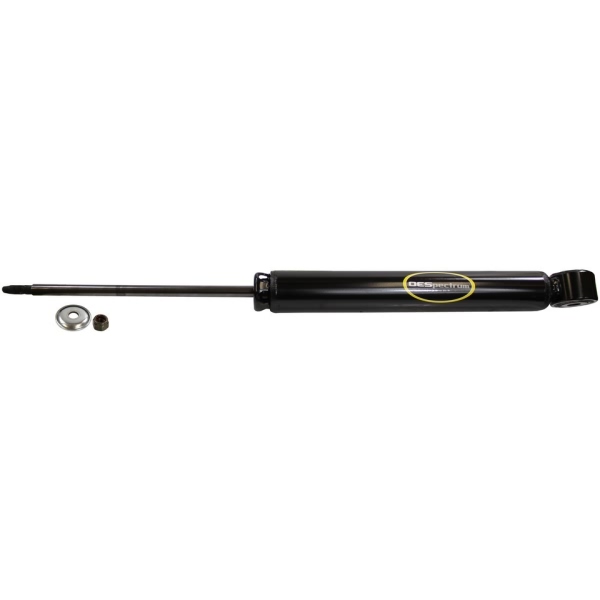

Part Description | OESpectrum™ Rear Driver or Passenger Side Shock Absorber |
Compressed Bumper Stop | No |
Compressed Length | 13.74" |
Dust Shield | No |
Extended Bumper Stop | Yes |
Extended Hydraulic Lockout | No |
Extended Length | 23.02" |
Lower Mounting | Loop Bushing and Sleeve Mount - 0.55" (14 mm) Sleeve ID x 1.3125" Sleeve OAL |
Reserve Tube Diameter | 1.75" |
Stroke Length | 9.28" |
UPC | 048598178930 |
Upper Mounting | Stem Mount - Stem Length x M10 Thread Pitch |
Year Make Model | Trim | Engine |
---|---|---|
2012-2015 Volkswagen Beetle | All Trims | All Engines |
2016 Volkswagen Beetle | Allstar | All Engines |
2016 Volkswagen Beetle | Comfortline | All Engines |
2016 Volkswagen Beetle | Fleet Edition | All Engines |
2016 Volkswagen Beetle | Turbo | All Engines |
2016 Volkswagen Beetle | Wolfsburg Edition | All Engines |
2016-2017 Volkswagen Beetle | Classic | All Engines |
2016-2017 Volkswagen Beetle | S | All Engines |
2016-2017 Volkswagen Beetle | SE | All Engines |
2016-2017 Volkswagen Beetle | SEL | All Engines |
