Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Monroe |
Part Number | 34763 |

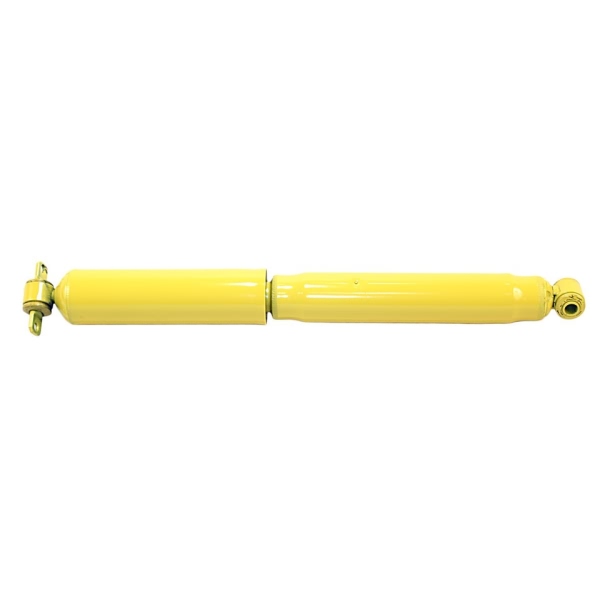

Part Description | Gas-Magnum™ Rear Driver or Passenger Side Shock Absorber |
Compressed Length | 14.625" |
Dust Shield | Yes |
Dust Shield Material | Metal |
Extended Bumper Stop | Yes |
Extended Hydraulic Lockout | No |
Extended Length | 23.875" |
Lower Mounting | Loop Bushing and Sleeve Mount - 0.563" Sleeve ID x 1.625" Sleeve OAL |
Stroke Length | 9.25" |
UPC | 048598050038 |
Upper Mounting | Cross Pin Mount - Closed Ended, 0.313" Hole ID (Both Ends) x 2.875" Pin Length (Hole Center to Center) |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Cadillac Escalade | All Trims | All Engines |
1996-2019 Chevrolet Express 2500 | All Trims | All Engines |
1996-2018 Chevrolet Express 3500 | All Trims | All Engines |
1992-1999 Chevrolet K1500 Suburban | All Trims | All Engines |
1992-1999 Chevrolet K2500 Suburban | All Trims | All Engines |
1995-1999 Chevrolet Tahoe | All Trims | All Engines |
2000 Chevrolet Tahoe | All Trims | 8 Cyl 5.7L |
1992-1999 GMC K1500 Suburban | All Trims | All Engines |
1992-1999 GMC K2500 Suburban | All Trims | All Engines |
1996-2019 GMC Savana 2500 | All Trims | All Engines |
