Check if it fits by entering your vehicle infoBrand | Monroe |
Part Number | 34741 |

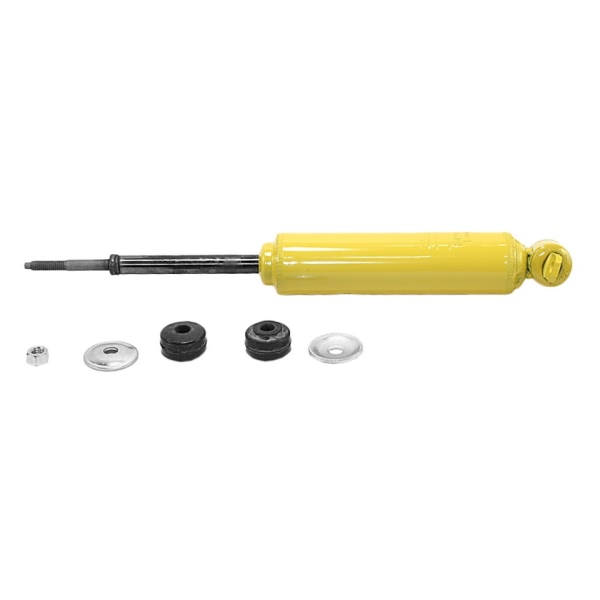

Part Description | Gas-Magnum™ Front Driver or Passenger Side Shock Absorber |
Compressed Length | 9.625" |
Dust Shield | No |
Extended Bumper Stop | Yes |
Extended Hydraulic Lockout | No |
Extended Length | 14.00" |
Lower Mounting | Cross Pin Mount - Closed Ended, 0.313" Hole ID (Both Ends) x 2.5" Pin Length (Hole Center to Center) |
Stroke Length | 4.375" |
UPC | 048598049780 |
Upper Mounting | Stem Mount - 2.375" Stem Length x 0.375"-16 Thread Pitch |
Year Make Model | Trim | Engine |
---|---|---|
1988-2000 Chevrolet C2500 | All Trims | All Engines |
1992-1999 Chevrolet C2500 Suburban | All Trims | All Engines |
1988-2000 Chevrolet C3500 | All Trims | All Engines |
1996-2002 Chevrolet Express 2500 | All Trims | All Engines |
1996-2002 Chevrolet Express 3500 | All Trims | All Engines |
1988-2000 GMC C2500 | All Trims | All Engines |
1992-1999 GMC C2500 Suburban | All Trims | All Engines |
1988-2000 GMC C3500 | All Trims | All Engines |
1996-2002 GMC Savana 2500 | All Trims | All Engines |
1996-2002 GMC Savana 3500 | All Trims | All Engines |
