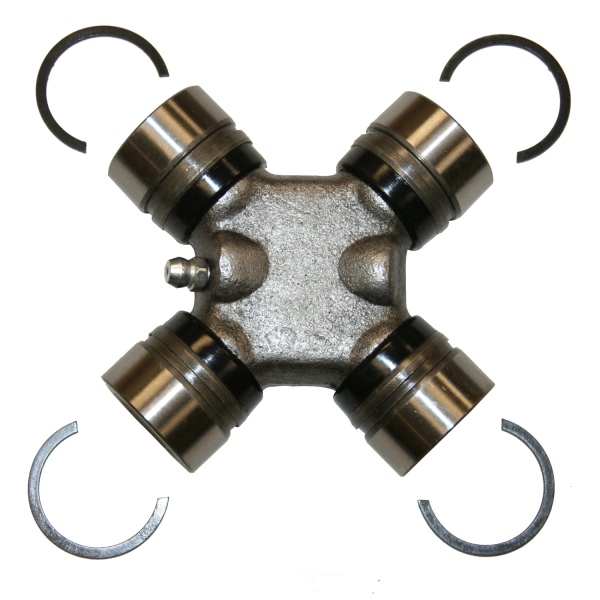

GMB® Grade Standard U-Joint 210-1309

GMB Grade Standard U-Joint 210-1309
$11.12
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandGMB
    Part Number210-1309
    Part DescriptionGrade Standard U-Joint
    Bearing Cap Axis 1 Diameter1.13
    Bearing Cap Axis 2 Diameter1.13
    Bearing Cap TypeGrooved
    Dimension1.126" Cap Diameter
    GreasableYes
    Height (Inch)1.30
    Length (Inch)3.50
    Length Axis 12.62
    Length Axis 22.62
    Lock Ring LocationInternal
    Lube Fitting LocationGrease Fitting in Cross
    MaterialSteel With Black Oxide Coating
    Mounting Hardware IncludedYes
    UPC083286128750
    Weight (Gross Pounds)1.30
    Width (Inch)3.50
    Warning: California’s Proposition 65
  • Features

    GMB Universal Joint are featured as follows:
    • Uses chrome-molybdenum alloy steel for extended life.
    • Has a snap ring that fits exactly.
    • Has heavy-duty bearing needles to ensure it can carry bigger loads.
    • Goes through multiple tests before being assembled to ensure their quality.
    • It also provides strap kits and U-bolt kits for easy installation.
    • Capable of high torque transmission at low frictional level.
    • These parts are cold-formed, hot forged, and machined to increase hardness as well as wear resistance.
    • Ground to design size within strict tolerance limits.
    • It is fitted with an oil seal and a dust cover to prevent foreign matter from getting into the inside journal area.
    • They are formulated from different grades or materials that can withstand extreme situations such as very high or very low temperatures.
    Made from an exclusive kind of Chrome-Molybdenum Alloy Steel, GMB Universal Joint 210-1309 guarantee exceptional resistance to rust and wear as well as are equipped with heavy-duty needle bearings ensuring increased load capacity. Maximum quality control measures have been put in place through multi-stage testing before assembly. These joint sets also include snap rings, strap kits and U-bolt kits for exact fit installation. A universal joint has a spider (cross) along with four roller grease filled bearings which handle high torque at low friction levels. After the components are hot forged or cold formed and machined, they are carburized in a furnace to make them more lasting against tear and wear. Severe tolerance is used while grinding the parts to design size, and an oil seal combined with dust cover guards the internal journal area from being invaded by foreign materials. GMB Universal Joint can be employed under various harsh conditions and it is important that they satisfy different needs of OEM customers like shaft sizes or other requirements.
    GMB is a renowned manufacturer with over 70 years in the making of first-class cooling and engine systems, drive parts for transmissions, axle parts, steering and suspension parts, driveline components, and bearings. The products of this company are suitable for micro cars, delivery vehicles and they cater for both local and foreign applications.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1968-1971 Chrysler 300All TrimsAll Engines
    1975-1978 Chrysler CordobaAll TrimsAll Engines
    1970-1975 Chrysler ImperialAll TrimsAll Engines
    1977-1978 Chrysler LeBaronAll TrimsAll Engines
    1968-1978 Chrysler New YorkerAll TrimsAll Engines
    1968-1978 Chrysler NewportAll TrimsAll Engines
    1968-1978 Chrysler Town & CountryAll TrimsAll Engines
    1976-1978 Dodge AspenAll TrimsAll Engines
    1978-1980 Dodge B100All TrimsAll Engines
    1974 Dodge B100 VanAll TrimsAll Engines
