Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 33931 |

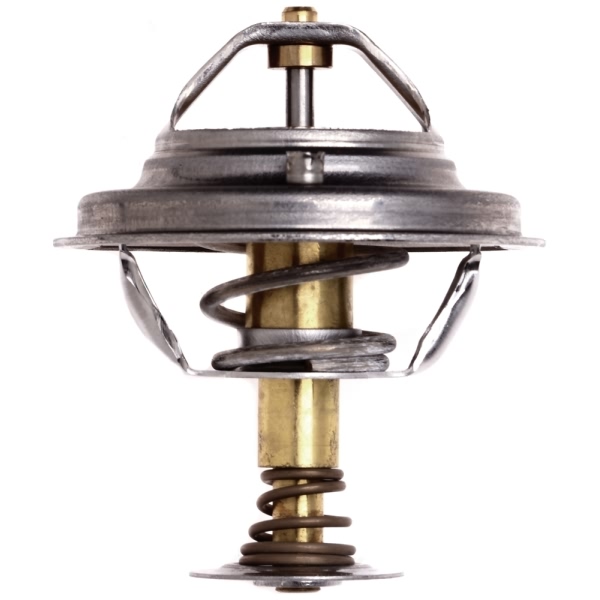

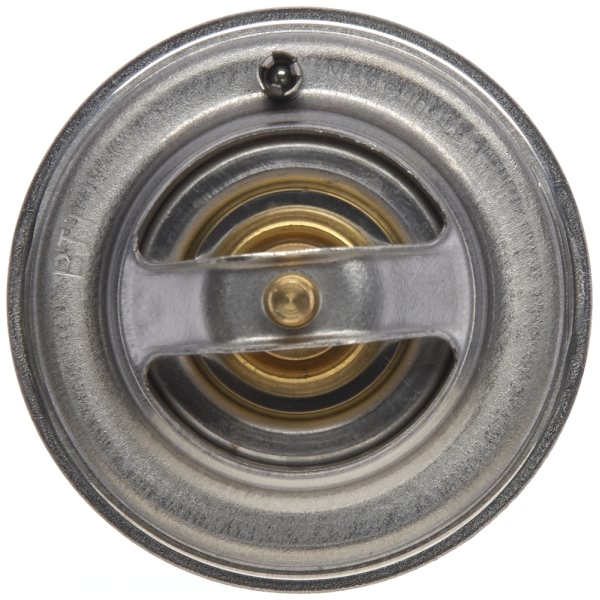

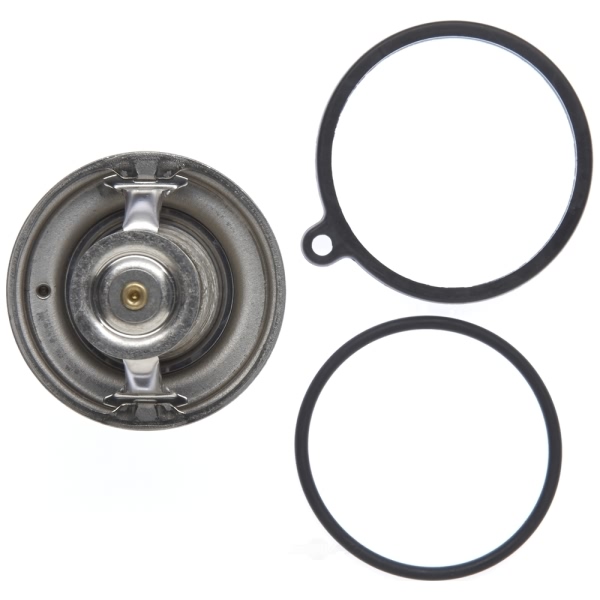

Part Description | OE Type Engine Coolant Thermostat |
By-Pass Flange Diameter | 1.14" |
Depth from Flange | 1.8" |
Design | Bottom By-Pass |
Flange Diameter | 2.62" |
Height from Flange | 1.3" |
Includes Installation Tool | No |
Jiggle Pin/Check Valve | Yes |
Material | Steel, Copper |
Number of Gaskets | 0 |
Number of Jiggle Pins/Check Valves | 1 |
Number of Seals | 2 |
OE Comparison Rating | OE Performance |
Seal Type | O-Ring |
Temperature (C) | 80 |
Temperature (F) | 176 |
Total Height | 3.1" |
Type | OE Type Thermostat |
UPC | 072053845617 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Mercedes-Benz 400E | All Trims | 8 Cyl 4.2L |
1992 Mercedes-Benz 400SE | All Trims | 8 Cyl 4.2L |
1993 Mercedes-Benz 400SEL | All Trims | 8 Cyl 4.2L |
1986-1991 Mercedes-Benz 420SEL | All Trims | 8 Cyl 4.2L |
1992-1993 Mercedes-Benz 500E | All Trims | 8 Cyl 5.0L |
1993 Mercedes-Benz 500SEC | All Trims | 8 Cyl 5.0L |
1992-1993 Mercedes-Benz 500SEL | All Trims | 8 Cyl 5.0L |
1990-1993 Mercedes-Benz 500SL | All Trims | 8 Cyl 5.0L |
1986-1991 Mercedes-Benz 560SEC | All Trims | 8 Cyl 5.6L |
1986-1991 Mercedes-Benz 560SEL | All Trims | 8 Cyl 5.6L |
