Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26212 |

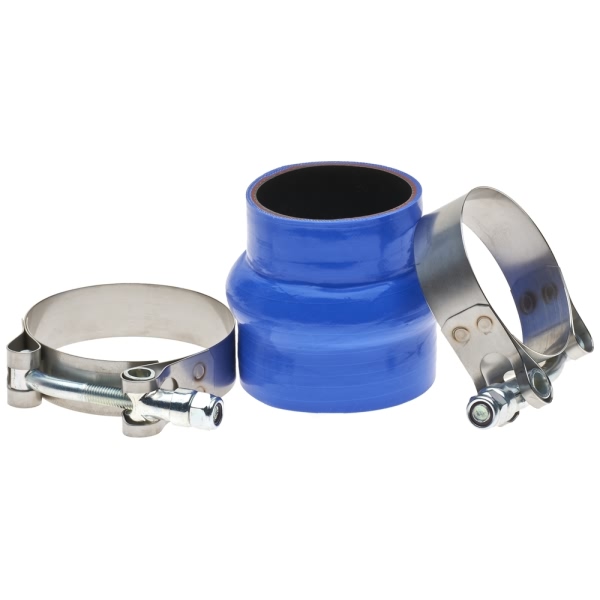

Part Description | OE Improved Dual I D Turbocharger Hose Kit |
Centerline Length (in) | 2.5 |
Centerline Length (mm) | 64 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 2.1 - 2.25 |
Clamp 1 - Clamping Range (mm) | 49.1 - 57.2 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 2.375 - 2.6875 |
Clamp 2 - Clamping Range (mm) | 60.5 - 68.3 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 2 |
Inside Diameter 1 (mm) | 51 |
Inside Diameter 2 (in) | 2.3 |
Inside Diameter 2 (mm) | 58 |
UPC | 770075601654 |
Year Make Model | Trim | Engine |
---|---|---|
1999 Ford F-250 Super Duty | All Trims | 8 Cyl 7.3L |
1999 Ford F-350 Super Duty | All Trims | 8 Cyl 7.3L |
