Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26266 |

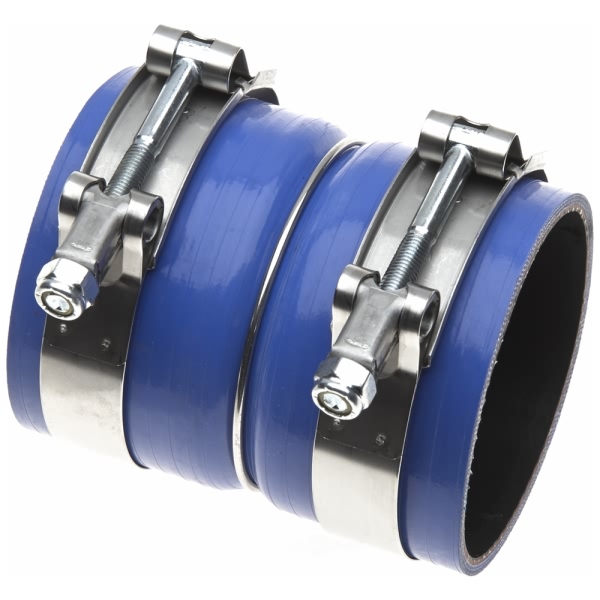

Part Description | Hot Side OE Improved Turbocharger Hose Kit |
Centerline Length (in) | 4 |
Centerline Length (mm) | 102 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 3.125 - 3.4375 |
Clamp 1 - Clamping Range (mm) | 79.4 - 87.3 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 3.125 - 3.4375 |
Clamp 2 - Clamping Range (mm) | 79.4 - 87.3 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 3 |
Inside Diameter 1 (mm) | 76 |
Inside Diameter 2 (in) | 3 |
Inside Diameter 2 (mm) | 76 |
UPC | 770075621157 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.6L |
2011-2016 Chevrolet Silverado 3500 HD | All Trims | 8 Cyl 6.6L |
2011-2016 GMC Sierra 2500 HD | All Trims | 8 Cyl 6.6L |
2011-2016 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.6L |
