Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26264 |

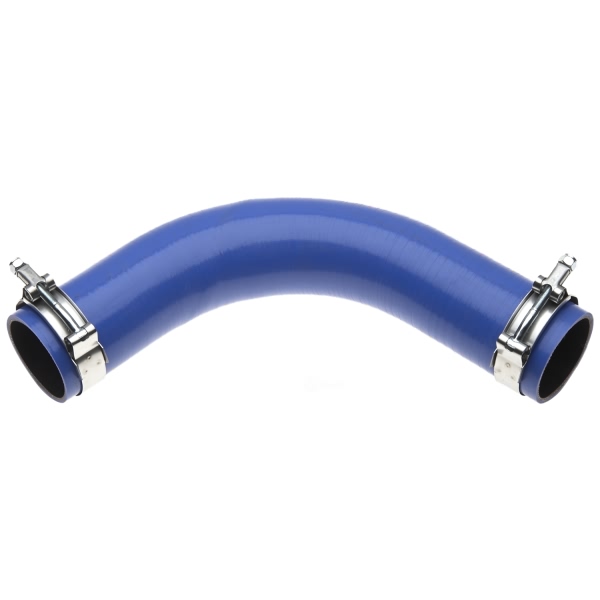

Part Description | Hot Side OE Improved Turbocharger Hose Kit |
Centerline Length (in) | 17.8 |
Centerline Length (mm) | 452 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 2.5 - 2.8125 |
Clamp 1 - Clamping Range (mm) | 63.5 - 71.4 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 2.5 - 2.8125 |
Clamp 2 - Clamping Range (mm) | 63.5 - 71.4 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 2.35 |
Inside Diameter 1 (mm) | 60 |
Inside Diameter 2 (in) | 2.35 |
Inside Diameter 2 (mm) | 60 |
UPC | 770075621133 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2004 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L |
2001-2004 GMC Sierra 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2004 GMC Sierra 3500 | All Trims | 8 Cyl 6.6L |
