Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26235 |

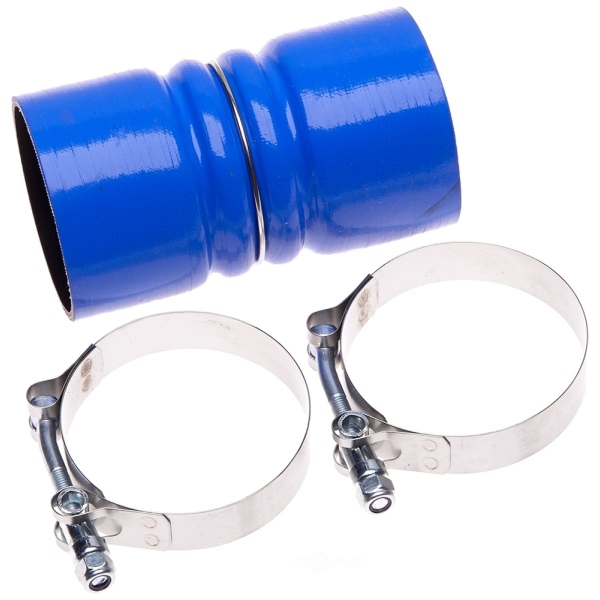

Part Description | Hot Side OE Improved Turbocharger Hose Kit |
Centerline Length (in) | 5.12 |
Centerline Length (mm) | 130 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 2.875 - 3.1875 |
Clamp 1 - Clamping Range (mm) | 73.2 - 81 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 2.875 - 3.1875 |
Clamp 2 - Clamping Range (mm) | 73.2 - 81 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 2.72 |
Inside Diameter 1 (mm) | 69 |
Inside Diameter 2 (in) | 2.72 |
Inside Diameter 2 (mm) | 69 |
UPC | 770075604877 |
Year Make Model | Trim | Engine |
---|---|---|
2010 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
2010 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
2010-2012 Ram 2500 | All Trims | 6 Cyl 6.7L |
2011-2012 Ram 3500 | All Trims | 6 Cyl 6.7L |
