Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26228 |

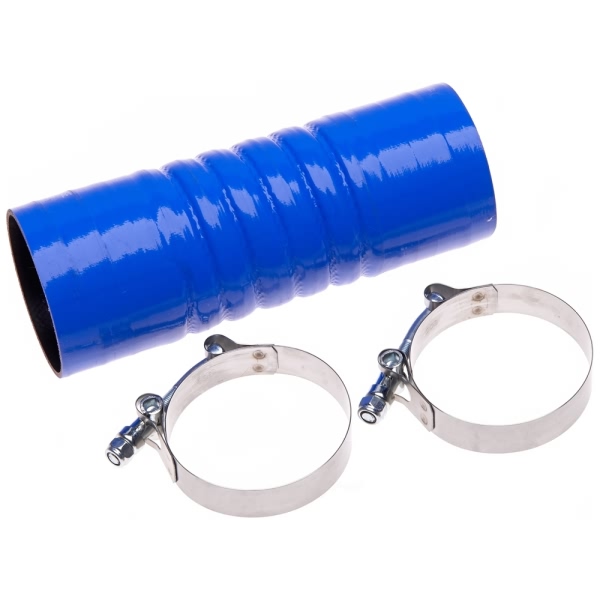

Part Description | Hot Side OE Improved Turbocharger Hose Kit |
Centerline Length | 199 or 7.83 |
Clamp 1 - Band Width | .75 or 19.1 |
Clamp 1 - Bolt Type | .25 in. - 28 Male Pipe Thread |
Clamp 1 - Clamping Range Max (in) | 3.0625 |
Clamp 1 - Clamping Range Max (mm) | 77.7 |
Clamp 1 - Clamping Range Min (in) | 2.75 |
Clamp 1 - Clamping Range Min (mm) | 69.9 |
Clamp 1 - Nut Type | .4375 in. Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width | .75 or 19.1 |
Clamp 2 - Bolt Type | .25 in. - 28 Male Pipe Thread |
Clamp 2 - Clamping Range Max (in) | 3.0625 |
Clamp 2 - Clamping Range Max (mm) | 77.7 |
Clamp 2 - Clamping Range Min (in) | 2.75 |
Clamp 2 - Clamping Range Min (mm) | 69.9 |
Clamp 2 - Nut Type | .4375 in. Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
Inside Diameter 1 | 2.72 or 69 |
Inside Diameter 2 | 2.72 or 69 |
OE Comparison Rating | OE Improved |
UPC | 770075604815 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
2003-2004 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
