Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26216 |

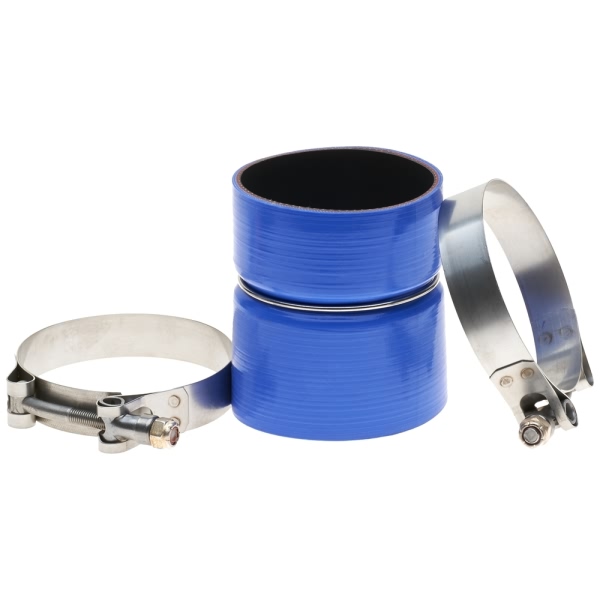

Part Description | Hot Side OE Improved Turbocharger Hose Kit |
Centerline Length (in) | 3.75 |
Centerline Length (mm) | 95 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 3.0625 - 3.375 |
Clamp 1 - Clamping Range (mm) | 77.8 - 85.7 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 3.0625 - 3.375 |
Clamp 2 - Clamping Range (mm) | 77.8 - 85.7 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 3 |
Inside Diameter 1 (mm) | 76 |
Inside Diameter 2 (in) | 3 |
Inside Diameter 2 (mm) | 76 |
UPC | 770075601258 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 6.4L |
2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 6.4L |
