Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 33963 |

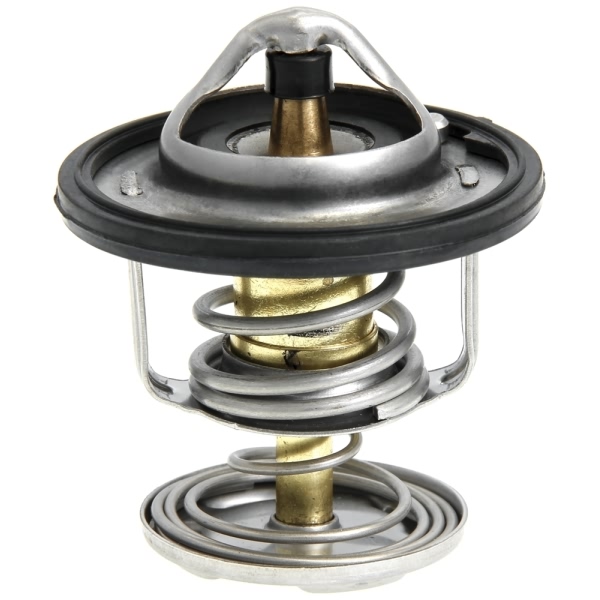

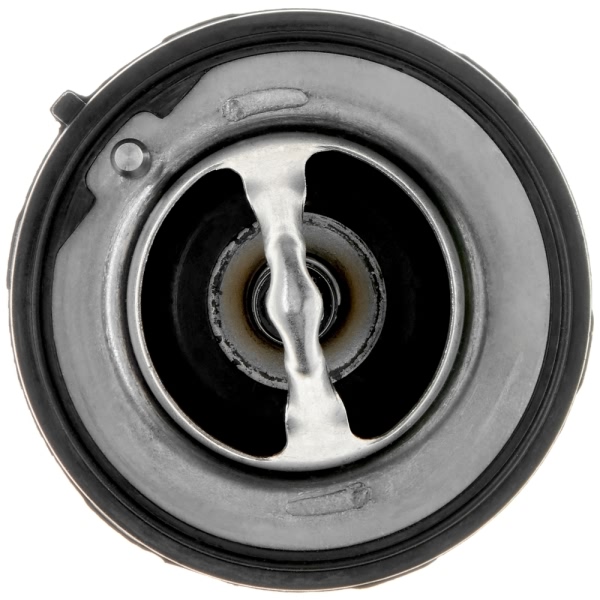

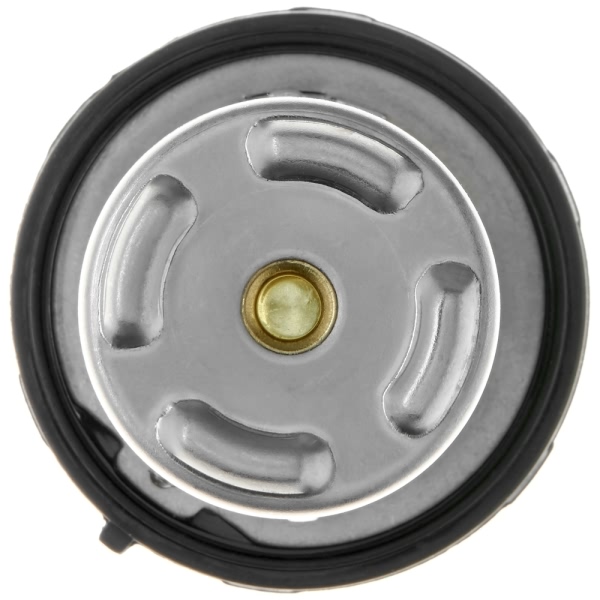

Part Description | Heavy Duty Engine Coolant Thermostat |
By-Pass Flange Diameter | 1.5" |
Depth from Flange | 1.89" |
Design | Bottom By-Pass |
Flange Diameter | 2.12" |
Height from Flange | 0.86" |
Includes Installation Tool | No |
Jiggle Pin/Check Valve | Yes |
Material | Steel, Copper |
Number of Gaskets | 0 |
Number of Jiggle Pins/Check Valves | 1 |
Number of Seals | 1 |
Seal Type | O-Ring |
Temperature (C) | 86 |
Temperature (F) | 187 |
Total Height | 2.75" |
Type | Heavy-Duty Thermostat |
UPC | 770075225980 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Buick Rainier | All Trims | 8 Cyl 5.3L |
2004-2005 Cadillac CTS | All Trims | 8 Cyl 5.7L |
2002-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
2002-2006 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
2003-2006 Cadillac Escalade ESV | All Trims | 8 Cyl 6.0L |
2002-2006 Cadillac Escalade EXT | All Trims | 8 Cyl 6.0L |
2002-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
1998-2002 Chevrolet Camaro | All Trims | 8 Cyl 5.7L |
2004 Chevrolet Cargo Van | All Trims | 8 Cyl 6.0L |
1997-2004 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
