Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Gates |
Part Number | 26232 |

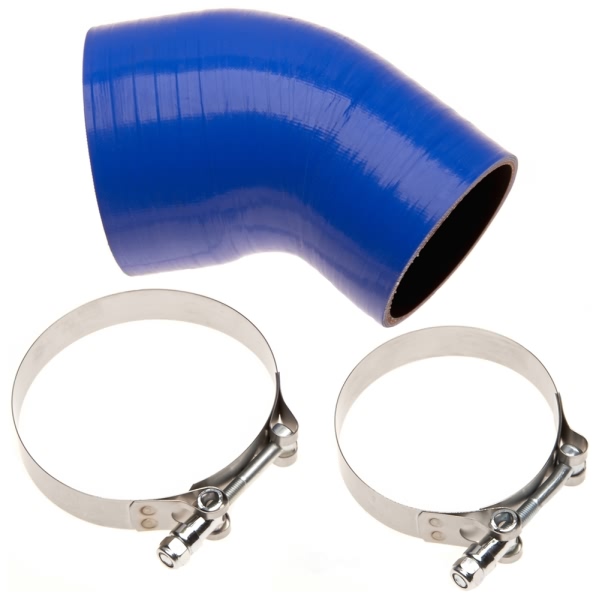

Part Description | Cold Side OE Improved Turbocharger Hose Kit |
Centerline Length (in) | 5.94 |
Centerline Length (mm) | 151 |
Clamp 1 - Band Width (in) | 0.75" |
Clamp 1 - Band Width (mm) | 19.1 |
Clamp 1 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 1 - Clamping Range (in) | 3.125 - 3.4375 |
Clamp 1 - Clamping Range (mm) | 79.5 - 87.4 |
Clamp 1 - Nut Type | 0.4375" Hex-Head |
Clamp 1 - Recommended Torque (in/lbs) | 75 |
Clamp 2 - Band Width (in) | 0.75" |
Clamp 2 - Band Width (mm) | 19.1 |
Clamp 2 - Bolt Type | 0.25" - 28 Male Pipe Thread |
Clamp 2 - Clamping Range (in) | 3.75 - 4.0625 |
Clamp 2 - Clamping Range (mm) | 95.3 - 103.1 |
Clamp 2 - Nut Type | 0.4375" Hex-Head |
Clamp 2 - Recommended Torque (in/lbs) | 75 |
Inside Diameter 1 (in) | 2.95 |
Inside Diameter 1 (mm) | 75 |
Inside Diameter 2 (in) | 3.62 |
Inside Diameter 2 (mm) | 92 |
UPC | 770075604846 |
Year Make Model | Trim | Engine |
---|---|---|
1994-2002 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
1994-2002 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
