Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46133 |

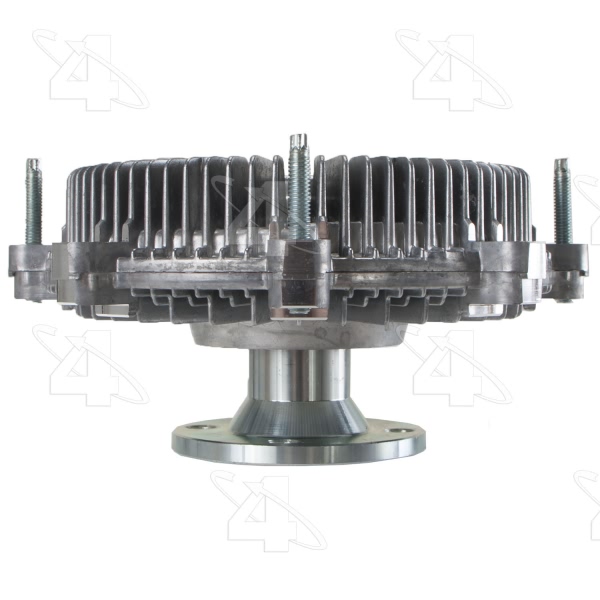

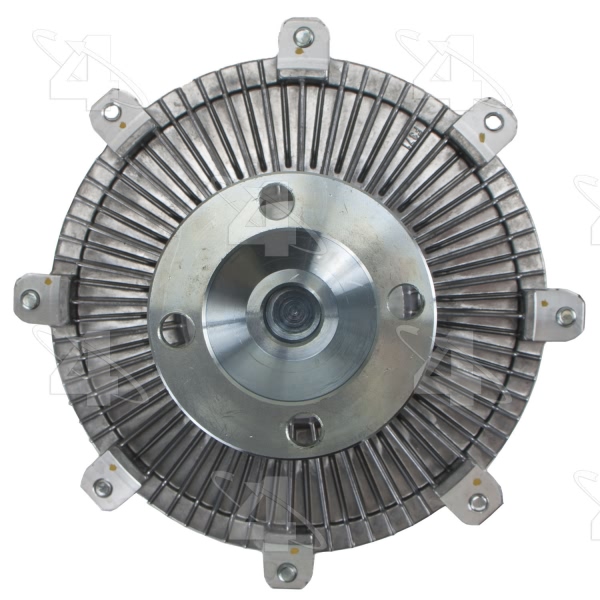

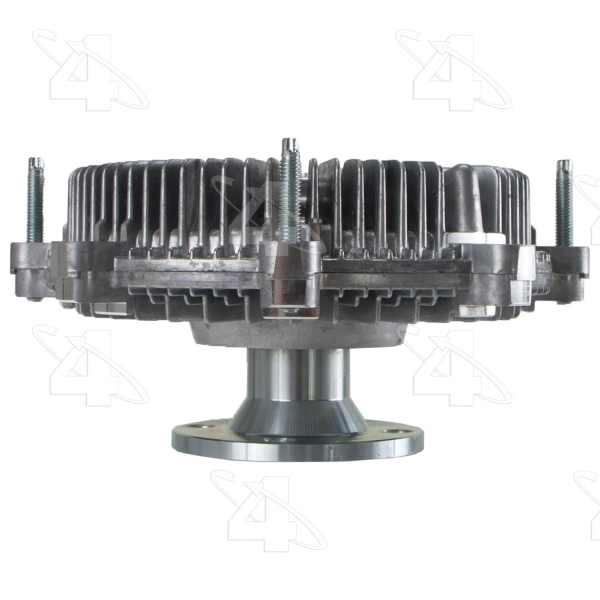

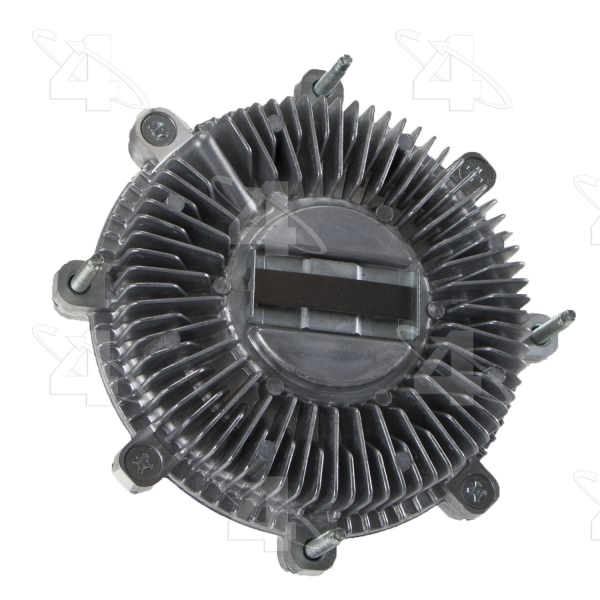

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 7.03 |
Clutch Type | Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.47 |
Fan Bolt Circle IN | 6.46 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.07 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Height IN | 3.37 |
Performance Rated | Yes |
Pilot Depth IN | 0.83 |
Pilot Dia. IN | 0.63 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361031036 |
Use Type | Standard Duty |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Isuzu Axiom | All Trims | All Engines |
2003 Isuzu Rodeo | All Trims | 6 Cyl 3.2L |
2004 Isuzu Rodeo | All Trims | All Engines |
2003 Isuzu Rodeo Sport | All Trims | 6 Cyl 3.2L |
