Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46104 |

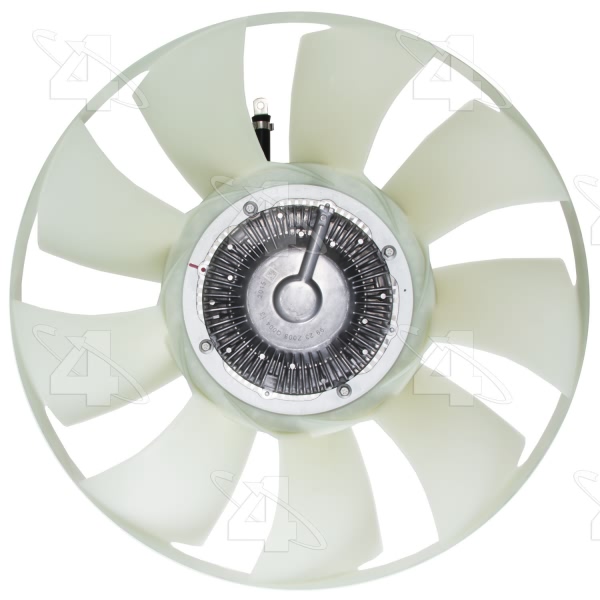

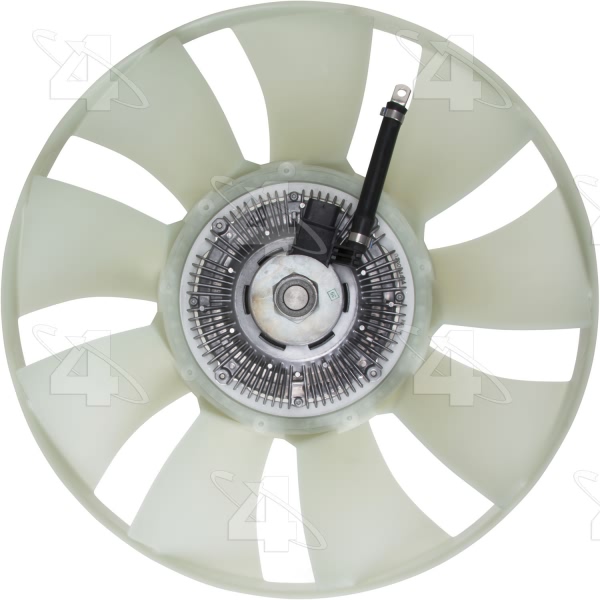

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 20 |
Clutch Type | Electronic |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.89 |
Drawing Type | C |
Electronic Clutch | Yes |
Fan Bolt Circle IN | 7.01 |
Fan Mount Dia. IN | -- |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mounting Hardware | Yes |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
O.E. Replacement | Yes |
Overall Height IN | 4 |
Performance Rated | Yes |
Pilot Depth IN | 0.57 |
Pilot Dia. IN | M30x1.500 |
Rotation | STD |
Style | Severe Duty |
UPC | 096361461048 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Freightliner Sprinter 2500 | All Trims | All Engines |
2014-2017 Freightliner Sprinter 2500 | All Trims | 6 Cyl 3.0L |
2018 Freightliner Sprinter 2500 | All Trims | All Engines |
2010-2013 Freightliner Sprinter 3500 | All Trims | All Engines |
2014-2017 Freightliner Sprinter 3500 | All Trims | 6 Cyl 3.0L |
2018 Freightliner Sprinter 3500 | All Trims | All Engines |
2010-2013 Mercedes-Benz Sprinter | All Trims | All Engines |
2010-2013 Mercedes-Benz Sprinter 2500 | All Trims | All Engines |
2014-2017 Mercedes-Benz Sprinter 2500 | All Trims | 6 Cyl 3.0L |
2018 Mercedes-Benz Sprinter 2500 | All Trims | All Engines |
