Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46082 |

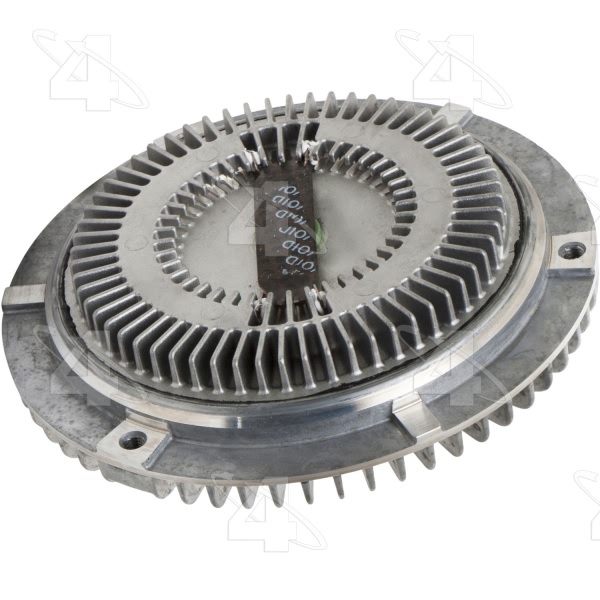

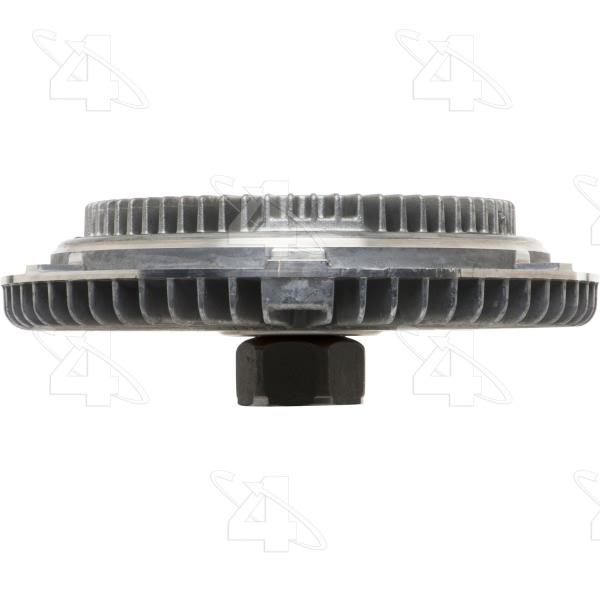

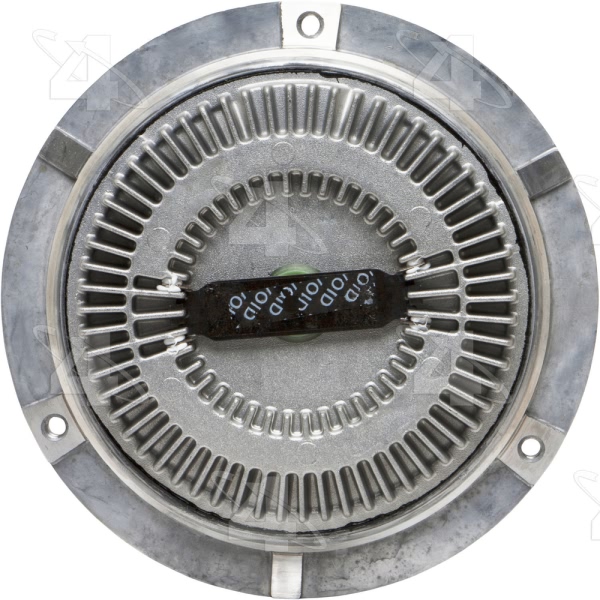

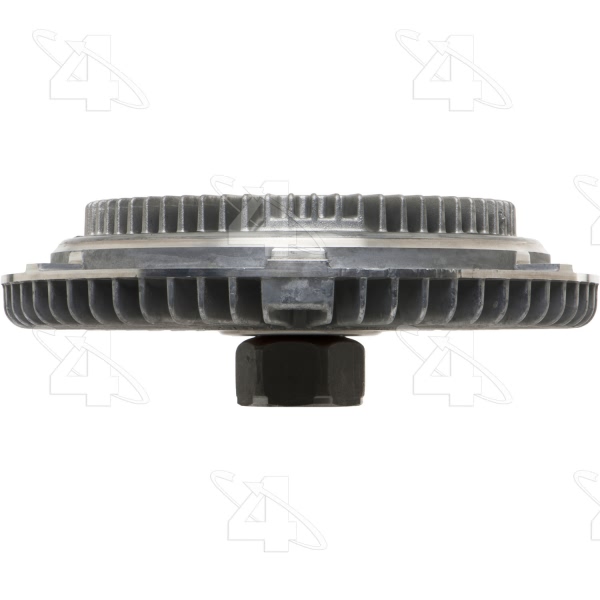

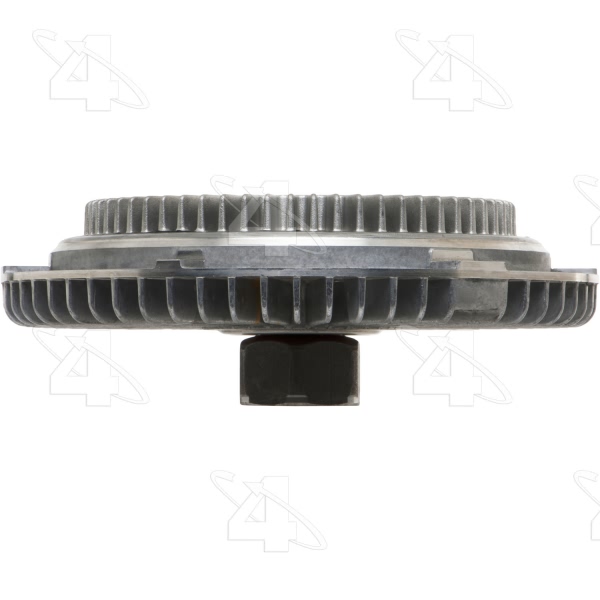

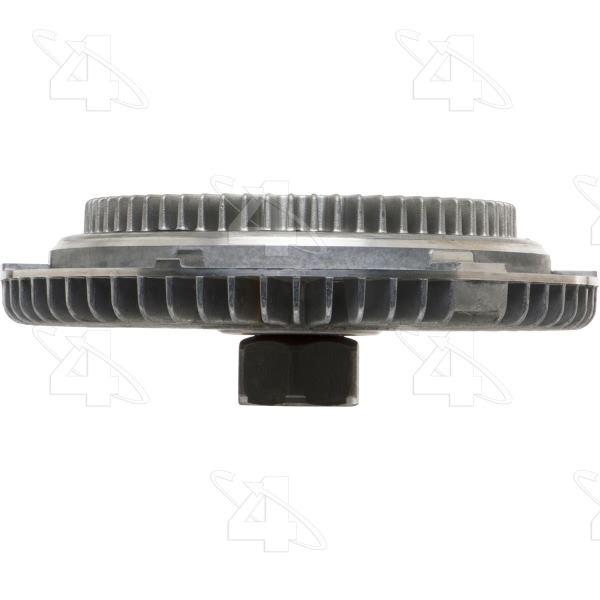

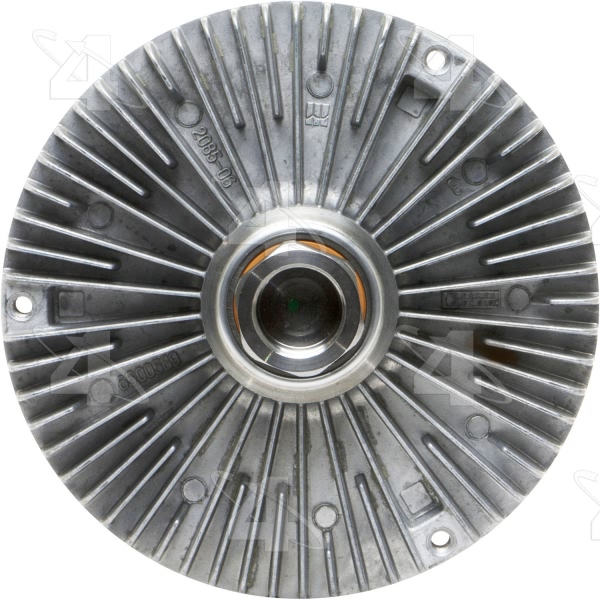

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.45 |
Electronic Clutch | No |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.25 HEX |
Mount Dia. MM | 32 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 160 |
Overall Height IN | 2.17 |
Overall Height MM | 55.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.58 |
Pilot Depth MM | 14.7 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460829 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
2000-2004 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
1997-2000 Audi A8 | All Trims | All Engines |
1997-2003 Audi A8 Quattro | All Trims | All Engines |
2002-2003 Audi S6 | All Trims | All Engines |
2001-2003 Audi S8 | All Trims | All Engines |
