Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46071 |

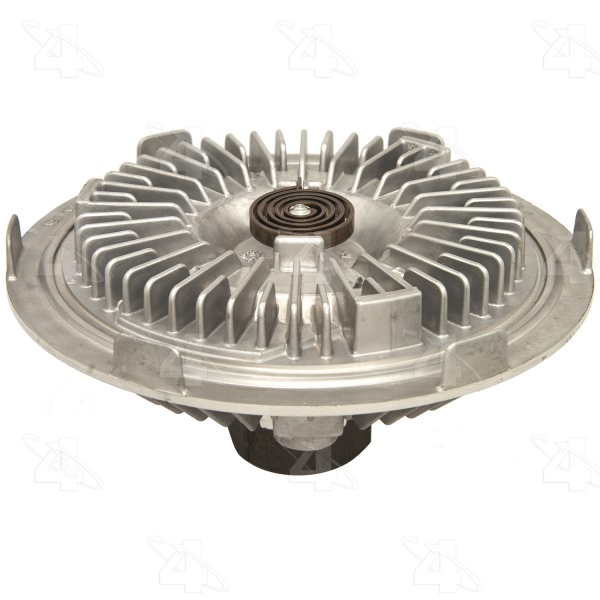

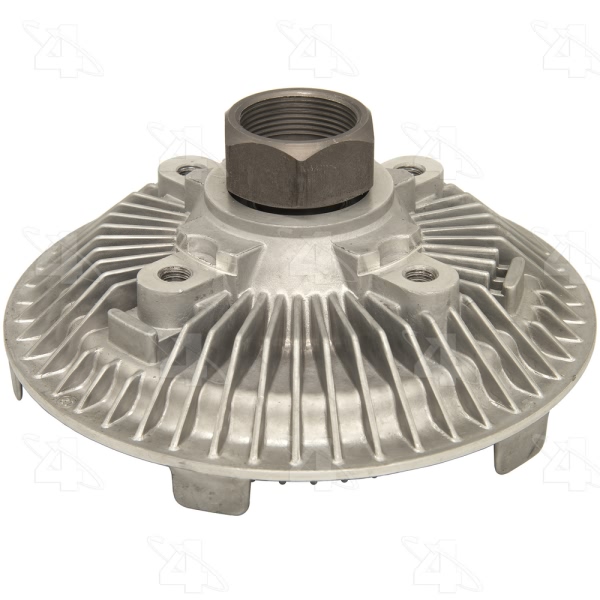

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 5.000 or 6 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.117 or 1.12 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 HEX |
Mount Dia. MM | 37 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 152.4 |
Overall Height IN | 2.84 |
Overall Height MM | 72.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.56 |
Pilot Depth MM | 14.3 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460713 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1997 Land Rover Defender 90 | All Trims | All Engines |
1994-1999 Land Rover Discovery | All Trims | All Engines |
1995 Land Rover Range Rover | All Trims | 8 Cyl 3.9L |
1995 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
