Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46068 |

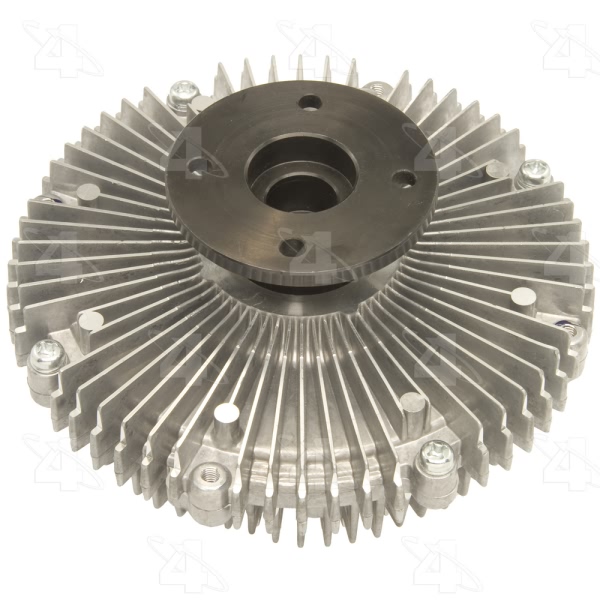

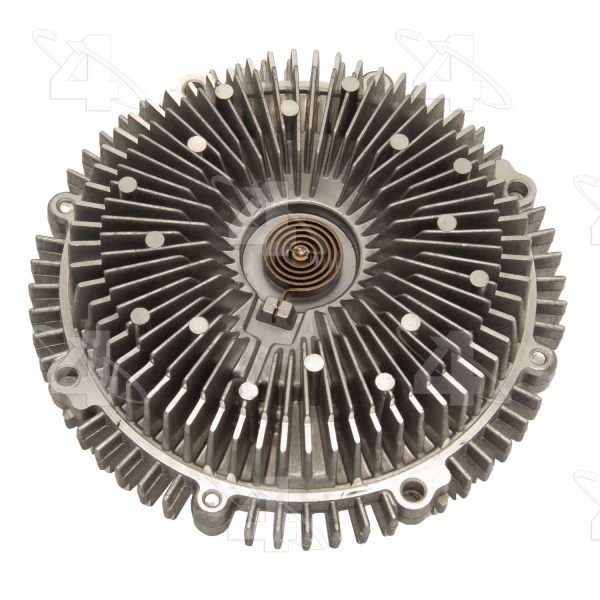

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 7.08 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.23 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6.58 |
Fan Bolt Circle MM | 167.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.19 |
Mount Dia. MM | 81 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 179.8 |
Overall Height IN | 3.53 |
Overall Height MM | 89.7 |
Performance Rated | Yes |
Pilot Depth IN | 0.44 |
Pilot Depth MM | 11.2 |
Pilot Dia. IN | 1.25 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361460683 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
2004-2010 Infiniti QX56 | All Trims | All Engines |
2005-2015 Nissan Armada | All Trims | All Engines |
2012-2017 Nissan NV2500 | All Trims | 8 Cyl 5.6L |
2012-2017 Nissan NV3500 | All Trims | 8 Cyl 5.6L |
2008-2012 Nissan Pathfinder | All Trims | 8 Cyl 5.6L |
2004 Nissan Pathfinder Armada | All Trims | All Engines |
2004-2015 Nissan Titan | All Trims | All Engines |
