Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46064 |

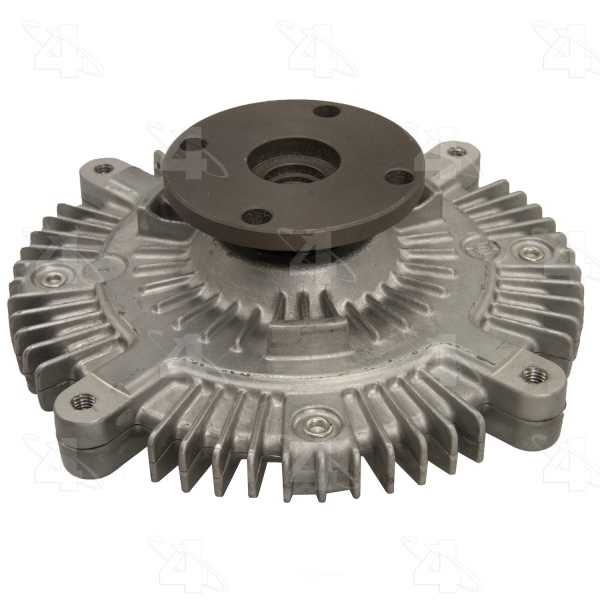

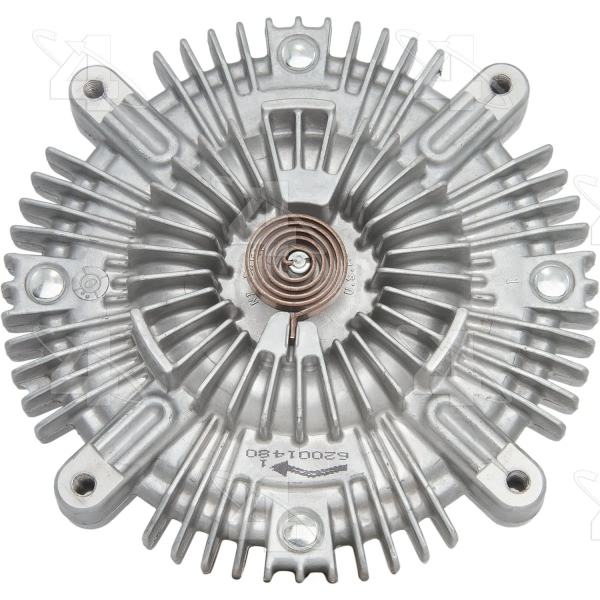

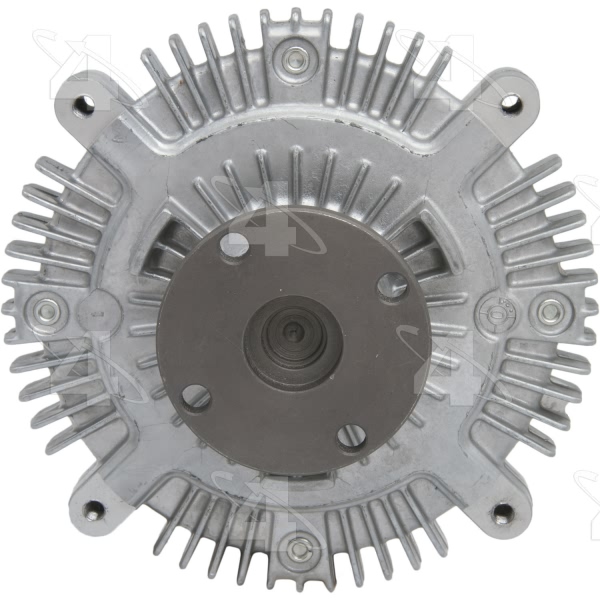

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2 or 2.000 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6.03 |
Fan Bolt Circle MM | 153.2 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.68 |
Mount Dia. MM | 68 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 |
Overall Height IN | 2.56 |
Overall Height MM | 65 |
Performance Rated | Yes |
Pilot Depth IN | 0.22 |
Pilot Depth MM | 5.6 |
Pilot Dia. IN | 0.94 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460645 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1995-2001 Kia Sportage | All Trims | All Engines |
