Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46061 |

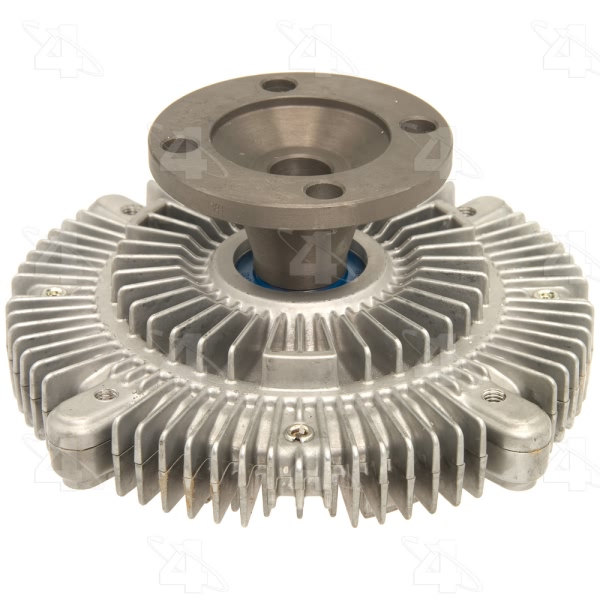

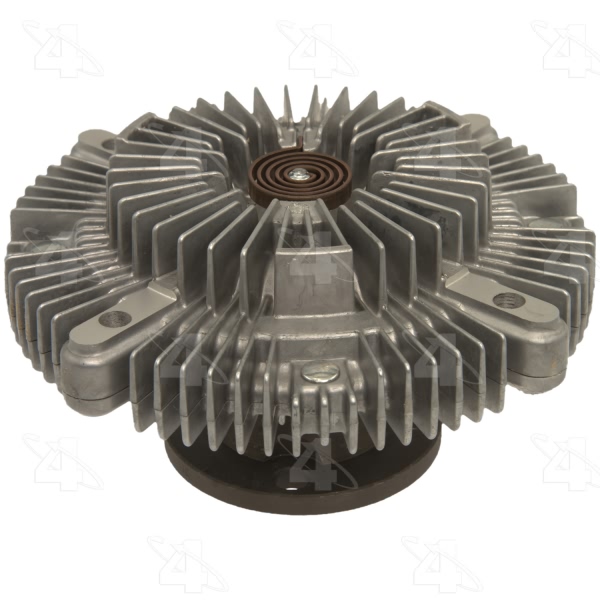

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.7 or 2.703 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.35 |
Fan Bolt Circle MM | 135.89 or 135.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.07 |
Mount Dia. MM | 78 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 or 168.91 |
Overall Height IN | 3.39 |
Overall Height MM | 86.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.81 |
Pilot Depth MM | 20.6 |
Pilot Dia. IN | .63 to 1.81 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460614 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1996-2000 Toyota 4Runner | All Trims | 4 Cyl 2.7L |
2010 Toyota 4Runner | All Trims | 4 Cyl 2.7L |
2006-2014 Toyota Hiace | All Trims | All Engines |
2004-2014 Toyota Hilux | All Trims | All Engines |
1994-1998 Toyota T100 | All Trims | 4 Cyl 2.7L |
1995-2004 Toyota Tacoma | All Trims | 4 Cyl 2.4L |
1995-2004 Toyota Tacoma | All Trims | 4 Cyl 2.7L |
2006-2018 Toyota Tacoma | All Trims | 4 Cyl 2.7L |
