Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46054 |

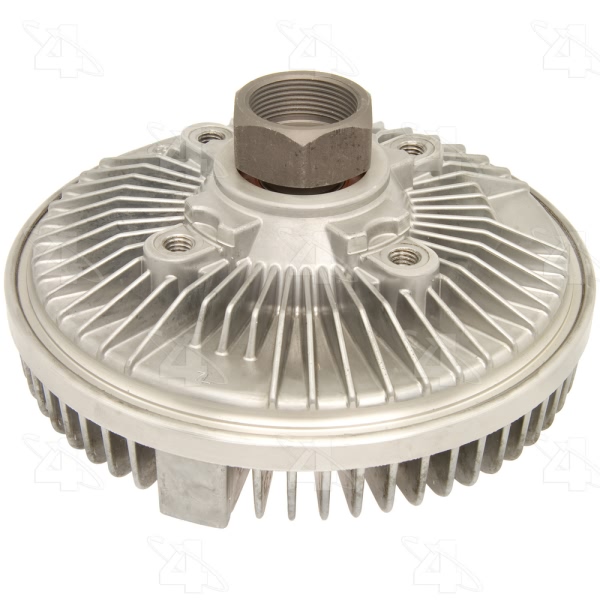

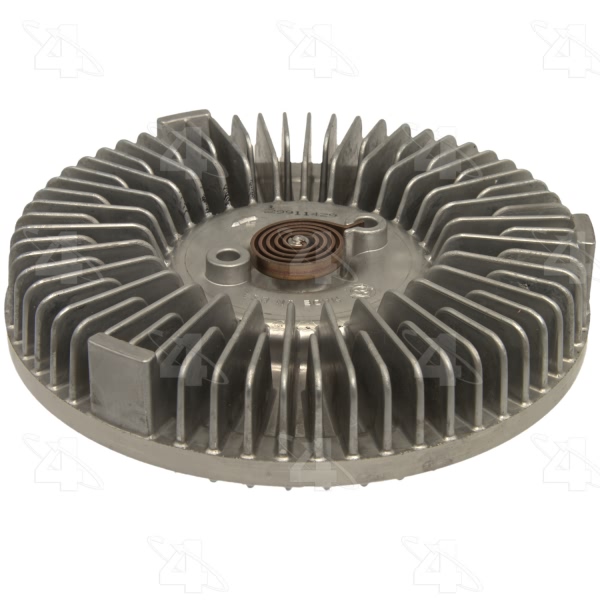

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 6.45 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.09 or 1.1 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 163.8 |
Overall Height IN | 3.13 |
Overall Height MM | 79.5 |
Performance Rated | Yes |
Pilot Depth IN | 0.56 |
Pilot Depth MM | 14.3 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460546 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
1999-2004 Land Rover Discovery | All Trims | All Engines |
1995 Land Rover Range Rover | All Trims | 8 Cyl 4.0L |
1996-2002 Land Rover Range Rover | All Trims | All Engines |
