Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46053 |

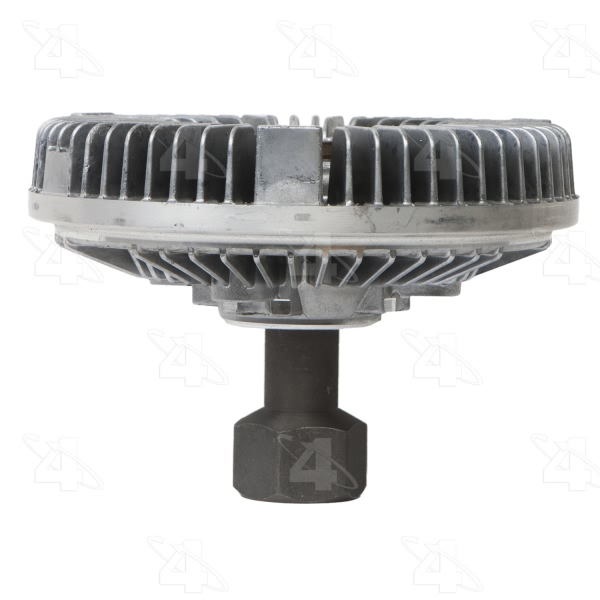

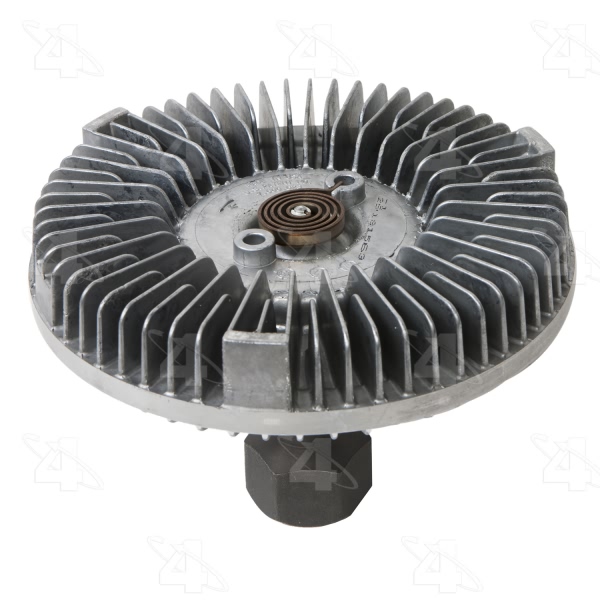

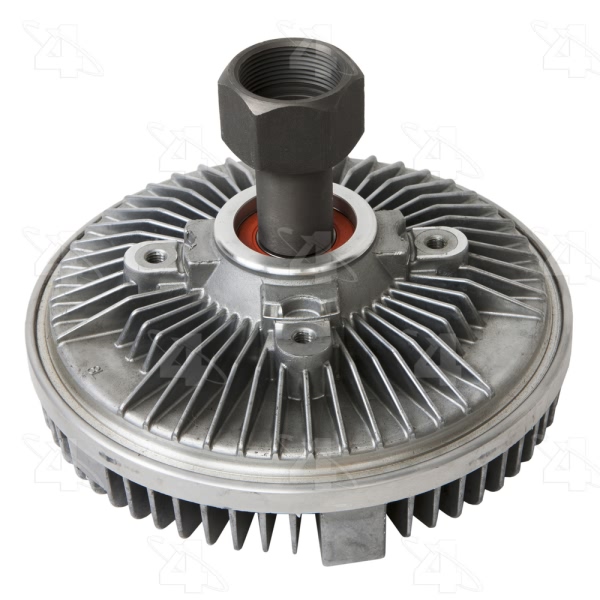

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.45 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.415 or 2.42 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 163.8 or 163.83 |
Overall Height IN | 4.44 |
Overall Height MM | 112.7 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460539 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford E-150 | All Trims | All Engines |
2007-2008 Ford E-150 Econoline | All Trims | All Engines |
2007-2014 Ford E-250 | All Trims | All Engines |
2007-2008 Ford E-350 Econoline | All Trims | All Engines |
2007-2015 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2015 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2016 Ford E-350 Super Duty | All Trims | All Engines |
2010-2014 Ford Econoline Van | All Trims | All Engines |
2010-2014 Ford Econoline Wagon | All Trims | All Engines |
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
