Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46037 |

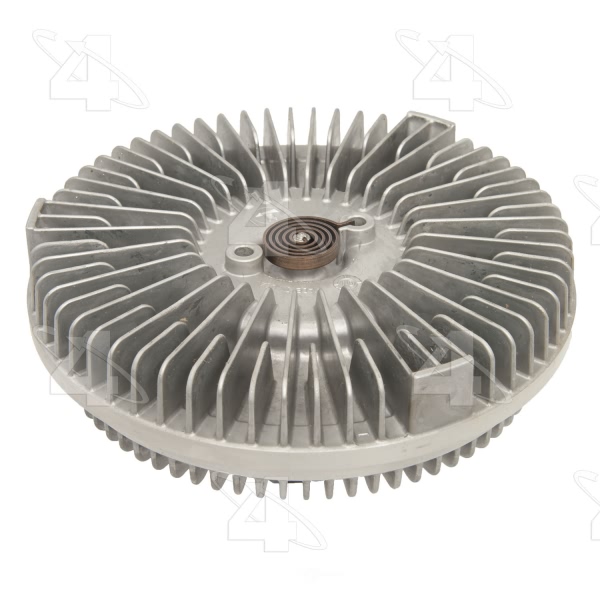

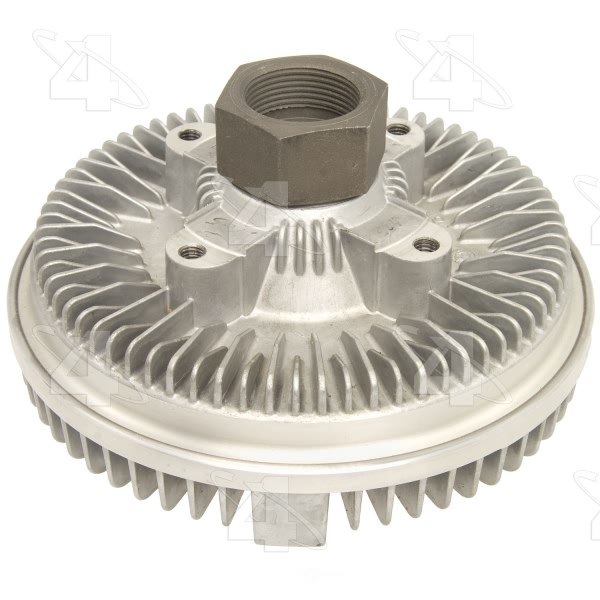

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 7.4 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.32 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.81 |
Fan Bolt Circle MM | 96.8 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.86 HEX |
Mount Dia. MM | 47 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 187.96 or 188 |
Overall Height IN | 3.83 |
Overall Height MM | 97.2 |
Performance Rated | Yes |
Pilot Depth IN | 0.76 or 0.77 |
Pilot Depth MM | 19.3 |
Pilot Dia. IN | M36x2.000 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460379 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
1999-2002 Chevrolet Express 2500 | All Trims | 8 Cyl 6.5L |
1999-2002 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L |
1999 Chevrolet P30 | All Trims | 8 Cyl 6.5L |
2006-2010 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.6L |
2007 Chevrolet Silverado 2500 HD Classic | All Trims | 8 Cyl 6.6L |
2006 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L |
2007 Chevrolet Silverado 3500 Classic | All Trims | 8 Cyl 6.6L |
2007-2010 Chevrolet Silverado 3500 HD | All Trims | 8 Cyl 6.6L |
1999 GMC P3500 | All Trims | 8 Cyl 6.5L |
1999-2002 GMC Savana 2500 | All Trims | 8 Cyl 6.5L |
