Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46029 |

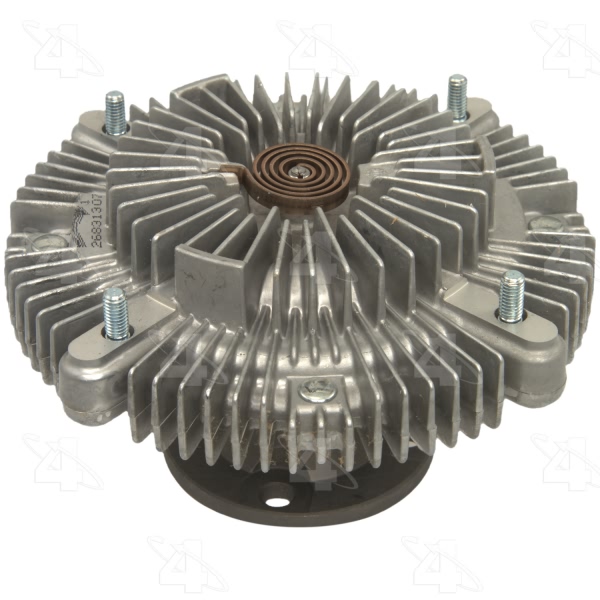

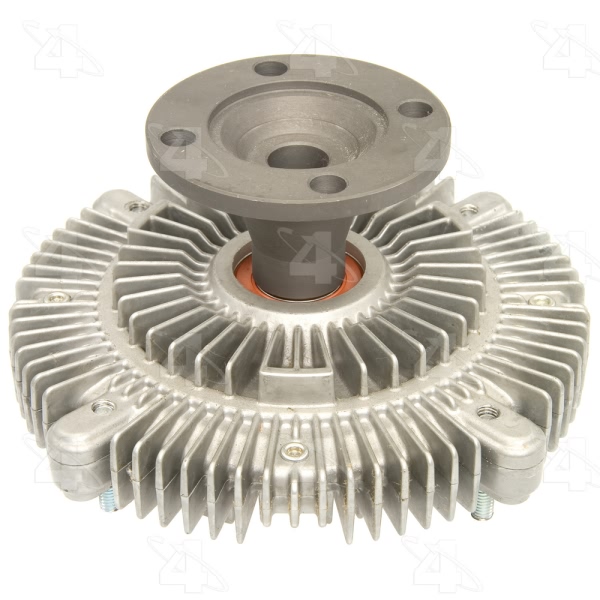

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.98 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.35 |
Fan Bolt Circle MM | 135.89 or 135.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.07 |
Mount Dia. MM | 78 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 or 168.91 |
Overall Height IN | 3.66 |
Overall Height MM | 93 |
Performance Rated | Yes |
Pilot Depth IN | 0.9 or 0.91 |
Pilot Depth MM | 22.86 or 22.9 |
Pilot Dia. IN | .63 to 1.81 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460294 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
2003-2009 Toyota 4Runner | All Trims | 6 Cyl 4.0L |
2007-2009 Toyota FJ Cruiser | All Trims | All Engines |
2005-2015 Toyota Tacoma | All Trims | 6 Cyl 4.0L |
2005-2011 Toyota Tundra | All Trims | 6 Cyl 4.0L |
